TIMED AUCTION
May 28. Monthly Multi-Facility CNC & Fab No Reserve Auction
schedule Auction Ends: 5/28/2025 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  2
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Illinois
Logistics: LOADING FEE OF $500.00 WILL BE ADDED TO WINNING INVOICE
Lot #: 2
End Date: Wednesday, May 28, 2025 4:14 PM Central Standard Time
Start Date: Thursday, May 15, 2025 7:58 PM Central Standard Time
Item #: 3877092
Machine Description

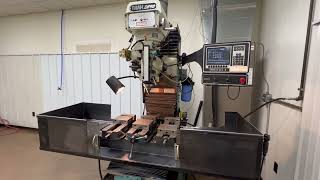

Trak DPM Bed Mill (1999)



Description


Make: Trak

Model: DPM

T-Slots: 63mm x 2.5"

X Travel: 31"

Y Travel: 17"

Z Travel: 23.5"

Spindle Head

Quill Diameter: 100mm

Spindle Taper: #40 NST, NMTB

Speed Range: 70-4200 RPM

Spindle Nose to Table (max part height): 0-25"

Spindle center to column face: 17.3"

Quill Feeds per revolution of Spindle: 0.002, 0.004, 0.006 in/revolution

Head Swiveling (right to left): 90 degrees

Spindle Motor

Power: 3 Hp

Voltage: 220V or 440V

Phase/Cycle: 3 Phase/60 Hz

Current: 8.6/4.3 amp

Max weight of workpiece: 1320 lbs

Maximum Machining Capacities

Drilling Mild Steel: 1.5" diameter

Tapping: 1.25"

Milling: 3 cubic in/minute

Boring: 4.75"

Approx shipping weight 4500 lbs

Pallet size 6' x 6'





Equipped With

DRO

Box Tooling



Table Vices Not Included
