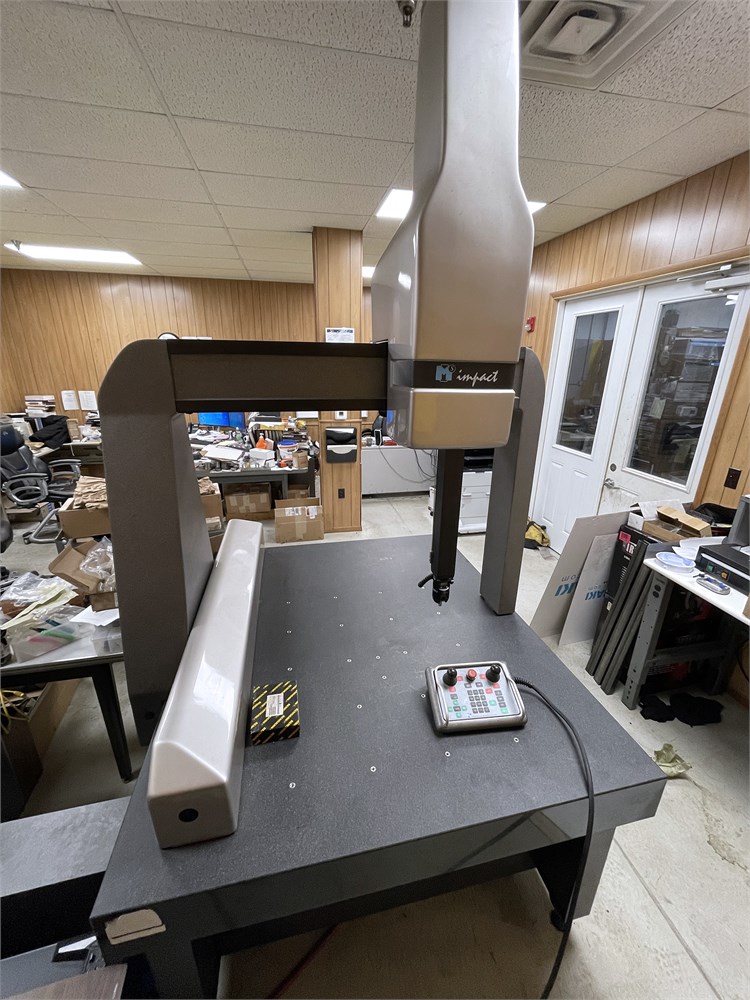

 IMS Impact 800 CMM (2008)



Description

IMS Impact800 Matrix CMM complete with 32-Bit architecture electronic control system, Virtual-DMIS measuring software, Renishaw PH10M indexable measuring probe head and accessories

Type: CMM
Make: IMS
Model: Impact 800
Age: 2008

(X) Bridge Axis Travel: 29.5" (750mm)
(Y) Table Axis Travel: 31.5" (800 mm)
(Z) Vertical Axis Travel: 21.7" (550 mm)

Accuracy:
ISO 10360 M= 3.5 + L/250 microns, B89 = 0.0095/400
Optical linear scales of 0.1 -micron resolution

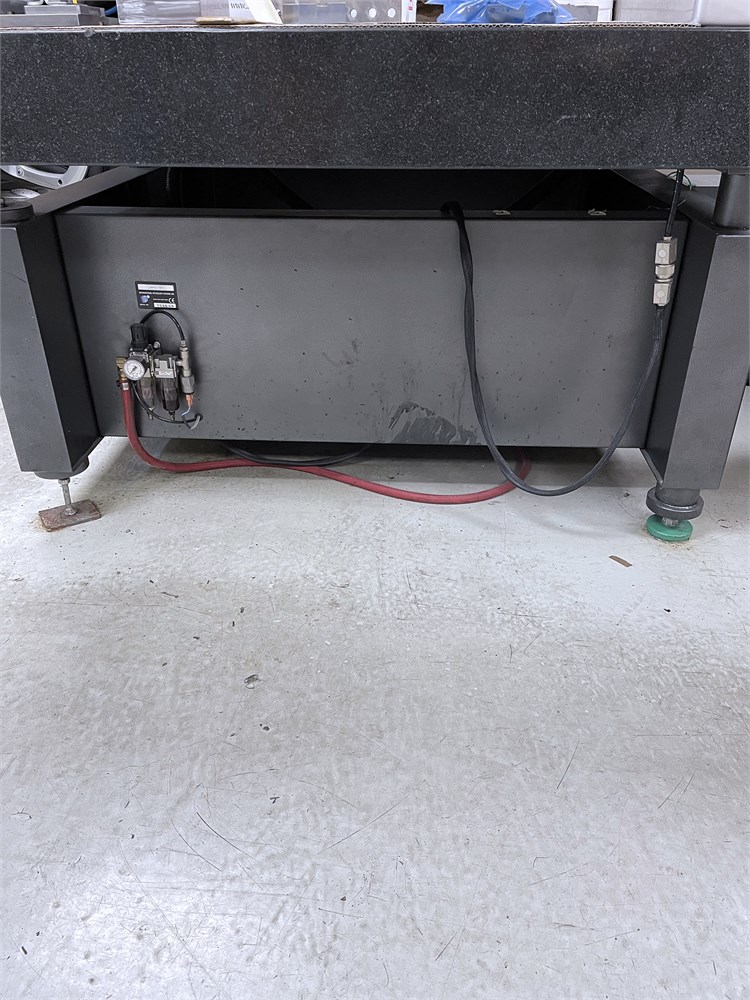

Air Bearings to each axis

On-Motion Electronic Control System:
*32-bit architecture On-Motion PCI continuous motion servo control card assembled into the PC
*Electric controller manufactured to EUC standards
*Systems Desk for computer and peripherals
*On-line system diagnostics software
*Continuous Motion Technology interpolation software for measuring cycle time optimization

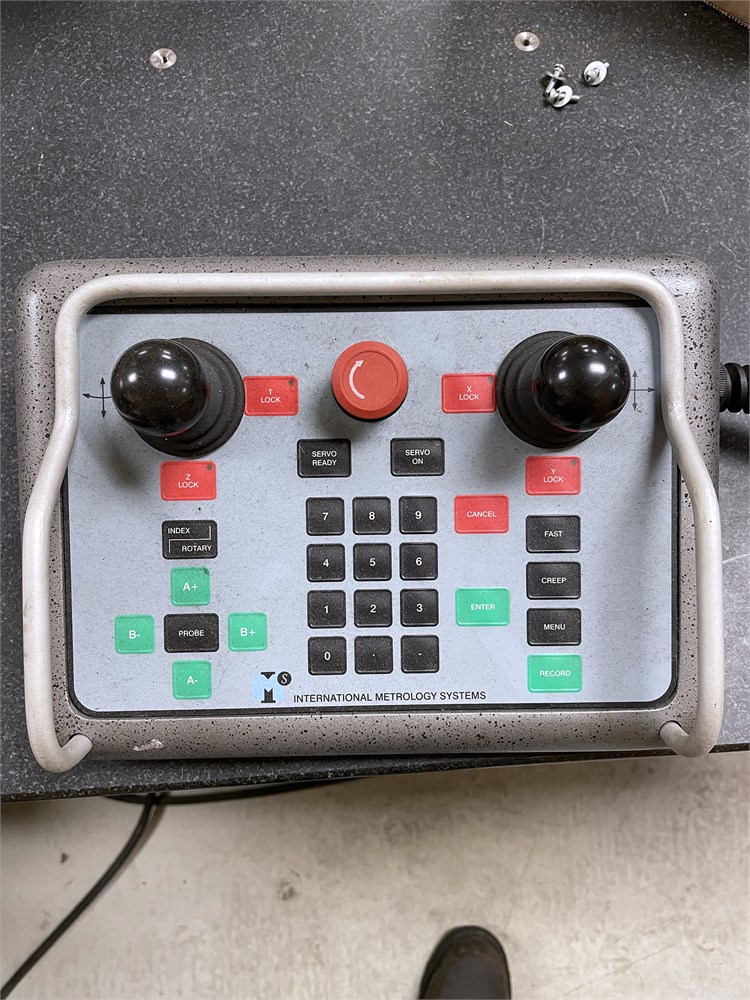

*Portable twin joystick teach box unit with interactive function membrane keypad (30 keys)
*Fully integrated Renishaw probing electronic control unit



Equipped With

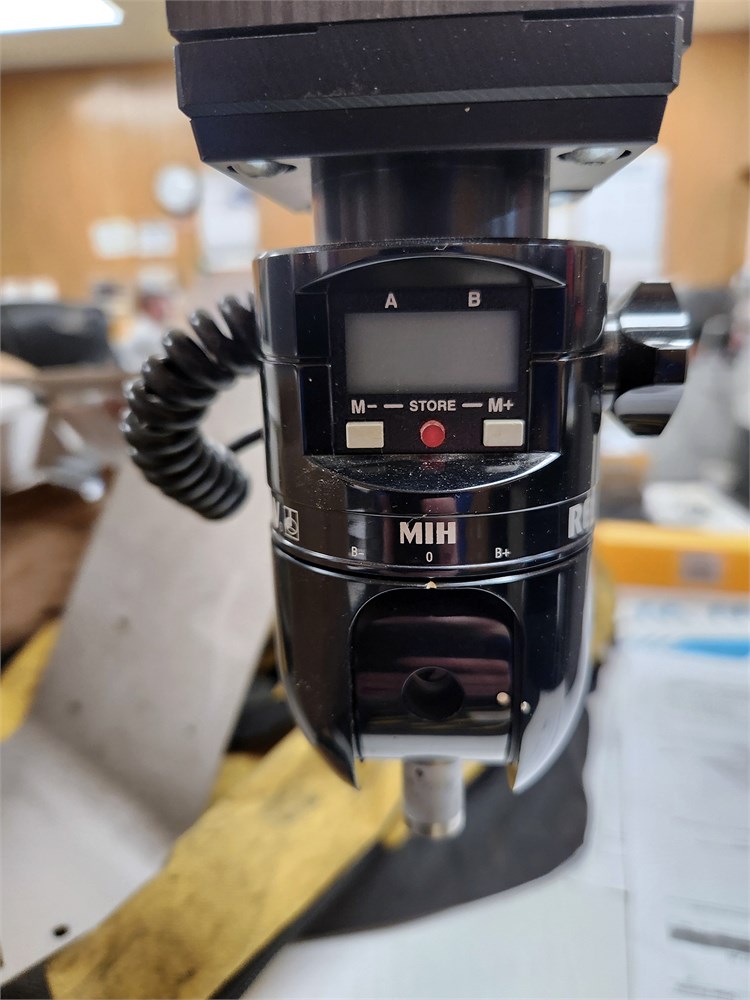

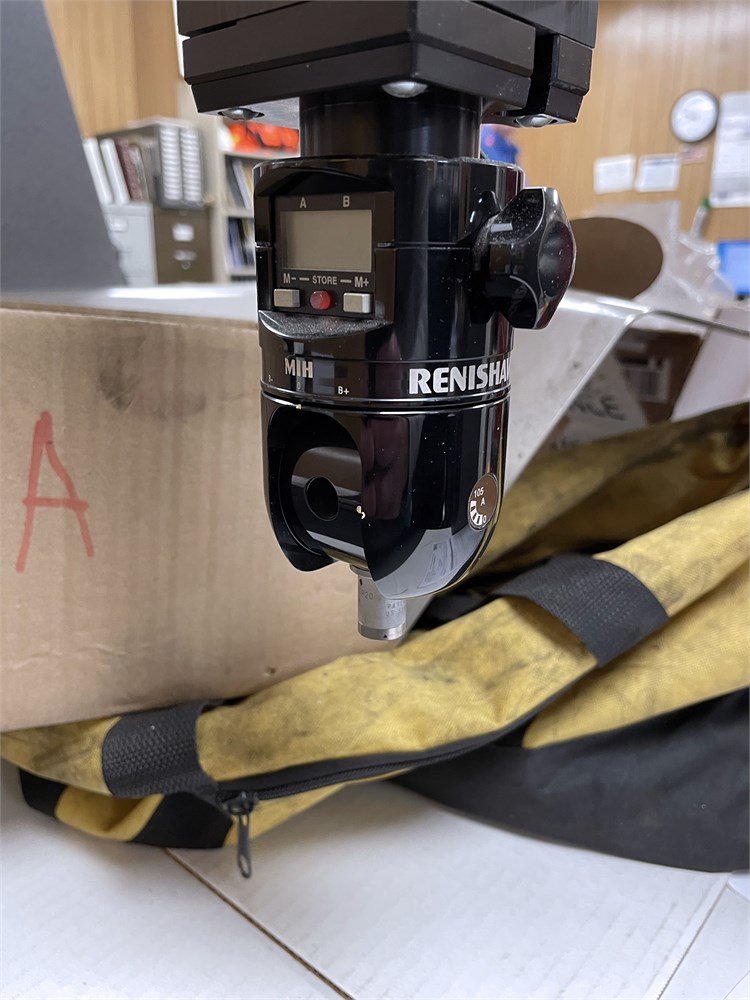

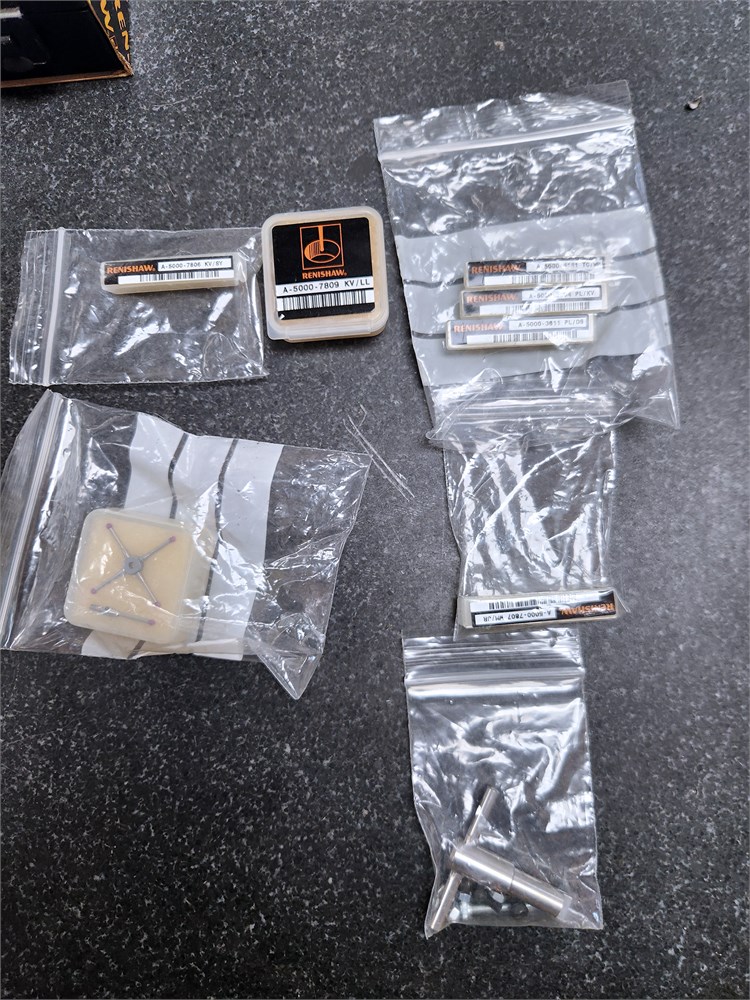

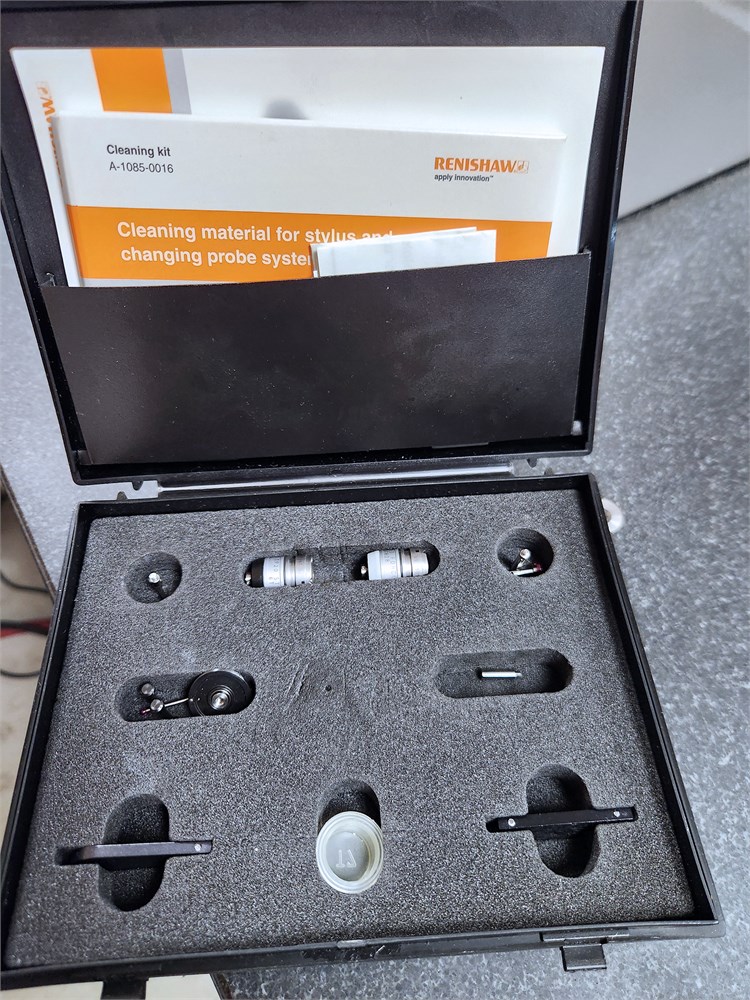

Renishaw M L H Indexable Probe Head Kit
Renishaw TP20 touch trigger probe

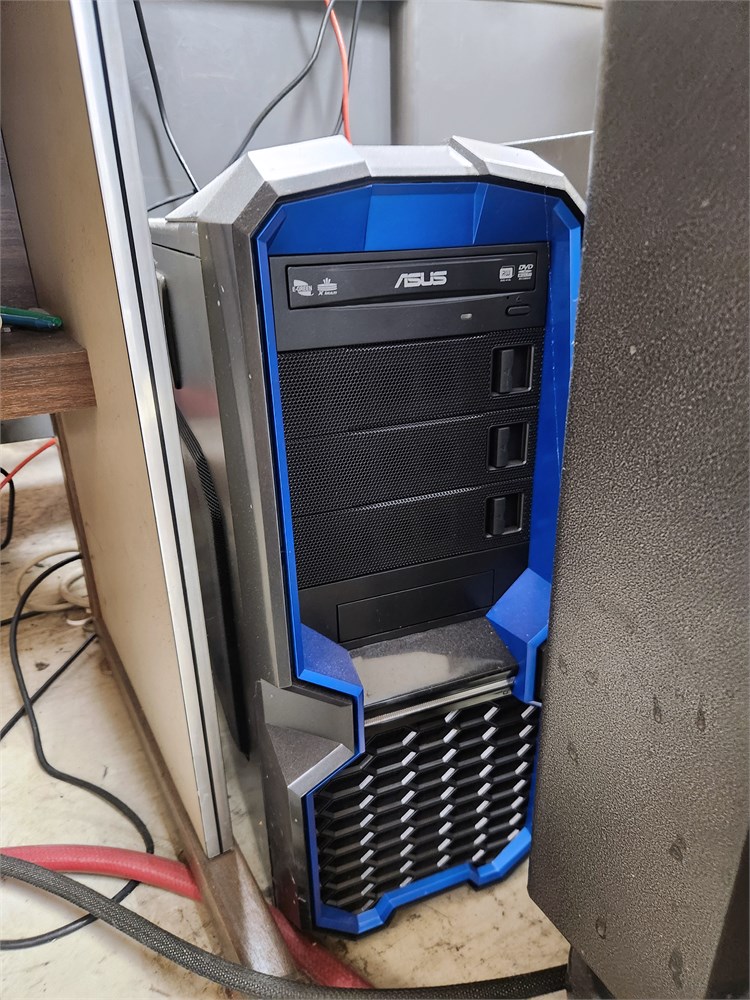

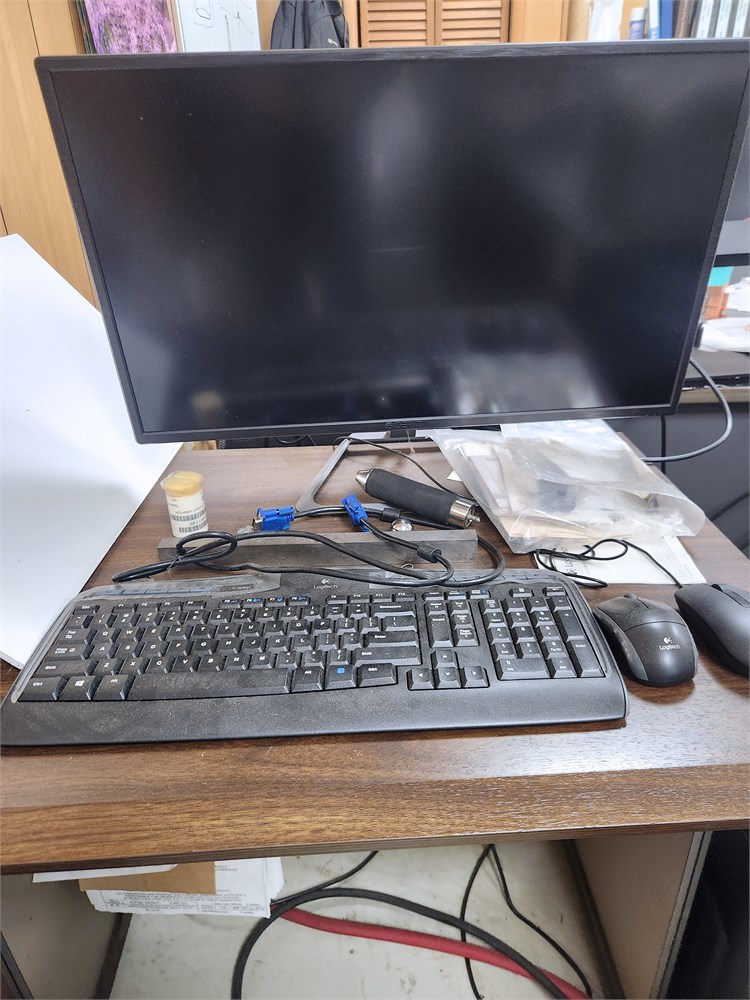

PC w/ Monitor
