TIMED AUCTION
5/7 CNC & Fab No Reserve Auction to Canadian Facilities
schedule Auction Ends: 5/7/2025 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  13
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Quebec
Logistics: LOADING FEE OF $xxxx WILL BE ADDED TO WINNING INVOICE
Lot #: 13
End Date: Wednesday, May 7, 2025 5:00 PM Central Standard Time
Start Date: Wednesday, April 23, 2025 8:13 PM Central Standard Time
Item #: 3864016
Machine Description

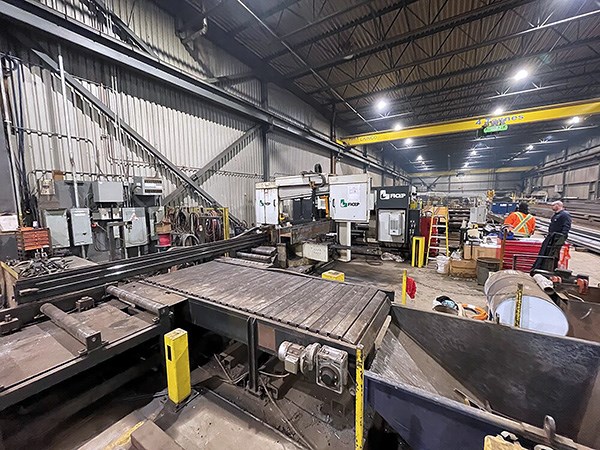

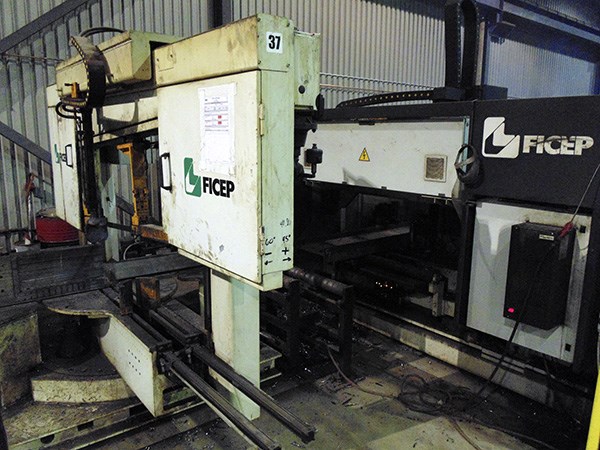

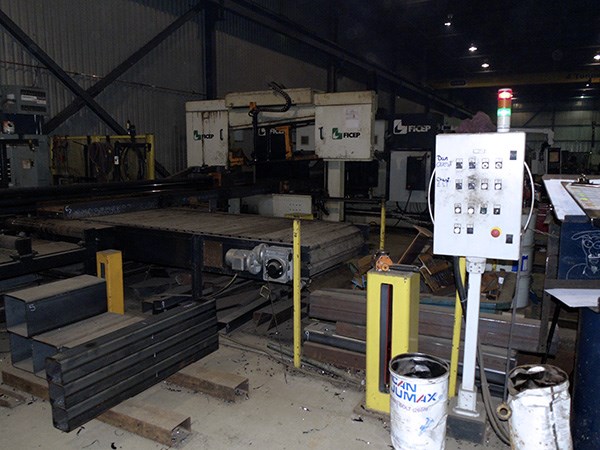

Ficep SC100 Horizontal Band Saw (2011)




CAPACITY: 40 inch x 17.75 inch


Capacity Range at 90°: 3-1/8” x 3/8” Min to 40” x 17-3/4” Max
Max Capacity at 60°: 13-3/4” x 13-3/4”
Max Capacity at 45°: 24-3/8” x 17-3/4”
Saw Blade Size (width x kerf): 1.61” x 0.051” x 310.24”
Saw Band Drive Motor: 7.5 HP
Saw Blade Speeds: 65 – 328 FPM (Programmable)

Angle Leg Height (Equal/Unequal Legs) : Min 3-1/8” x 3-1/8” x 3/8” Max 10” x 10” x 1-9/16”
Angle Flats Width Min Saw: Min 4” - Max 40”
Square Tubes Sizes: Min 3-1/8” - Max 17-3/4”
Rectangular Tubes Sizes Min/Max: 3-1/8” x 1-9/16”
Saw Rectangular Tubes Sizes: 40” x 17-3/4”

Overall Capacity: 44" x 44" x 4'
Max Length: 40' (Can be extended with options)
Min Length to be Transfered: 98"
Min Length to be Transferred in Working Zone (with Saw Rotation +45°/-60°) - Loading Side A: 106"
Min Length to be Transferred in Working Zone (with Saw Rotation +45°/-60°) - Loading Side B or A: 126"
Min Length to be Transferred in Working Zone (with Saw Rotation +60°/-60°) - Loading Side B: 145"

I-Beams Depth: Min 3-1/8” Max: 40”
I-Beams Flange Height Min: 1-5/8” Max: 17-3/4”
Channel Depth: Min 3-1/8” Max: 40”
Flange Height: Min 1-3/4” - Max 11-3/4”









Equipped With

Conveyor and Transfer Tables Not Included


Unloading Device with Magnet for Short Pieces
Automatic Web Probing (Top Side)
CNC Double Column
Gearbox Drive Type
Hydraulic Double-Jaw Vise Assembly
Infinitely Variable Spindle Speeds
Laser Measuring System
Layout Marking Capability
Possible to Work Lower Min Lengths with Auxiliary Transfer Device
Scribing Software & Floating Head Tool Assembly
SCS 100 Sawing Unit
Short Pieces Unloading Device
Spindle Probing
Thru Spindle and Flood Coolant System
Vertical Hold-Downs
