Machine Details
Location: Georgia
Logistics: Buyer responsible for loading and freight.
Lot #: 5
End Date: Wednesday, May 14, 2025 4:59 PM Central Standard Time
Start Date: Friday, April 25, 2025 8:02 PM Central Standard Time
Item #: 3855919
Machine Description

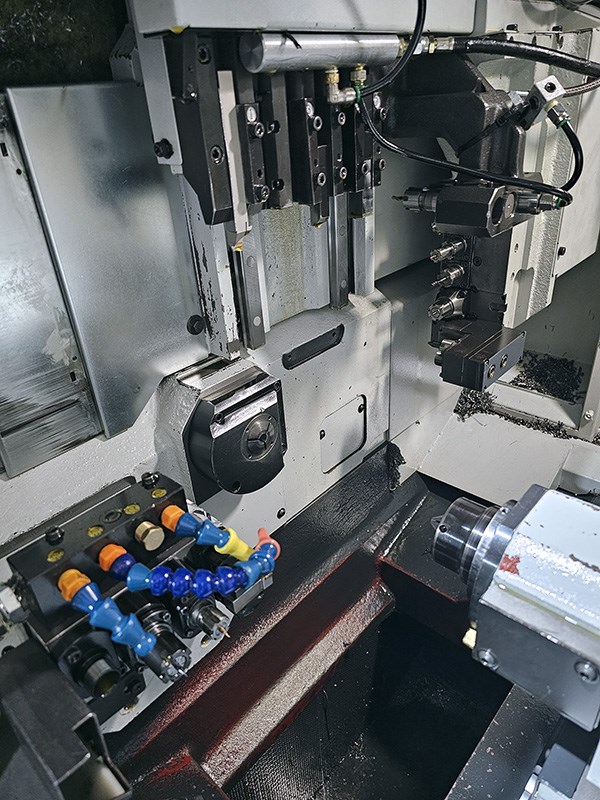

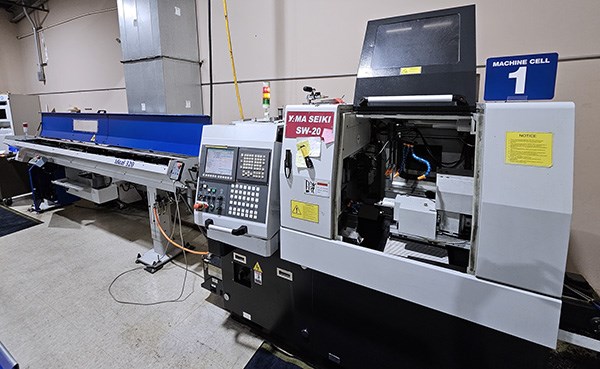

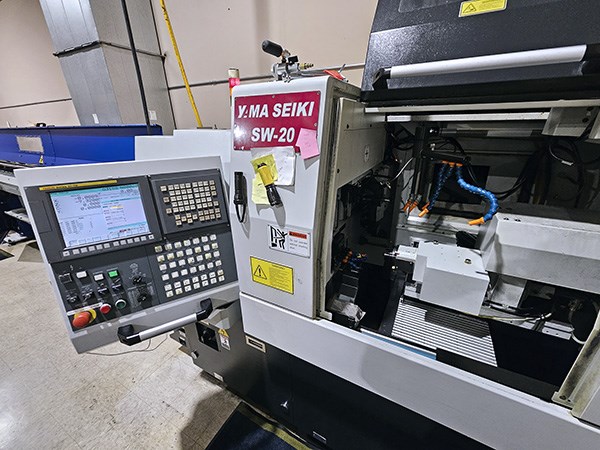

Yama Seiki SW-20 CNC Swiss Lathe (2011)



Description


Machining Length: 3.15"

Max Cutting Diameter: 0.787" (20mm)

Max headstock stroke: 8.15" (207mm) - One chucking Stroke

Max drilling capabilities:

Stationary: 0.39" (10mm)

Power-driven:  0.31" (8mm)

Max tapping capabilities:

Stationary: M8XP1.25

Power-driven: M6XP1.0

Max slotting capability: 1.5mm(W)X4 mm(D)

Max die cutting capability: M8XP1.25 - 1 Piece Cutter

Max milling capacity: 0.39" (10mm)

Main Spindle: 10,000 RPM

2nd Spindle: 8,000 RPM

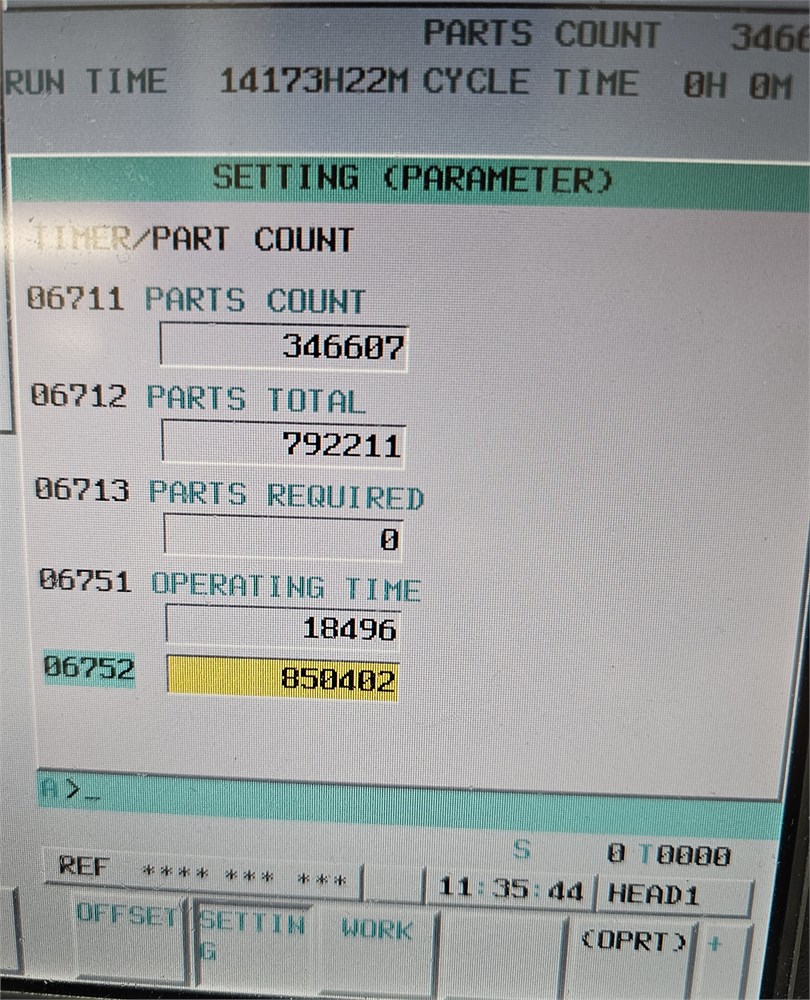

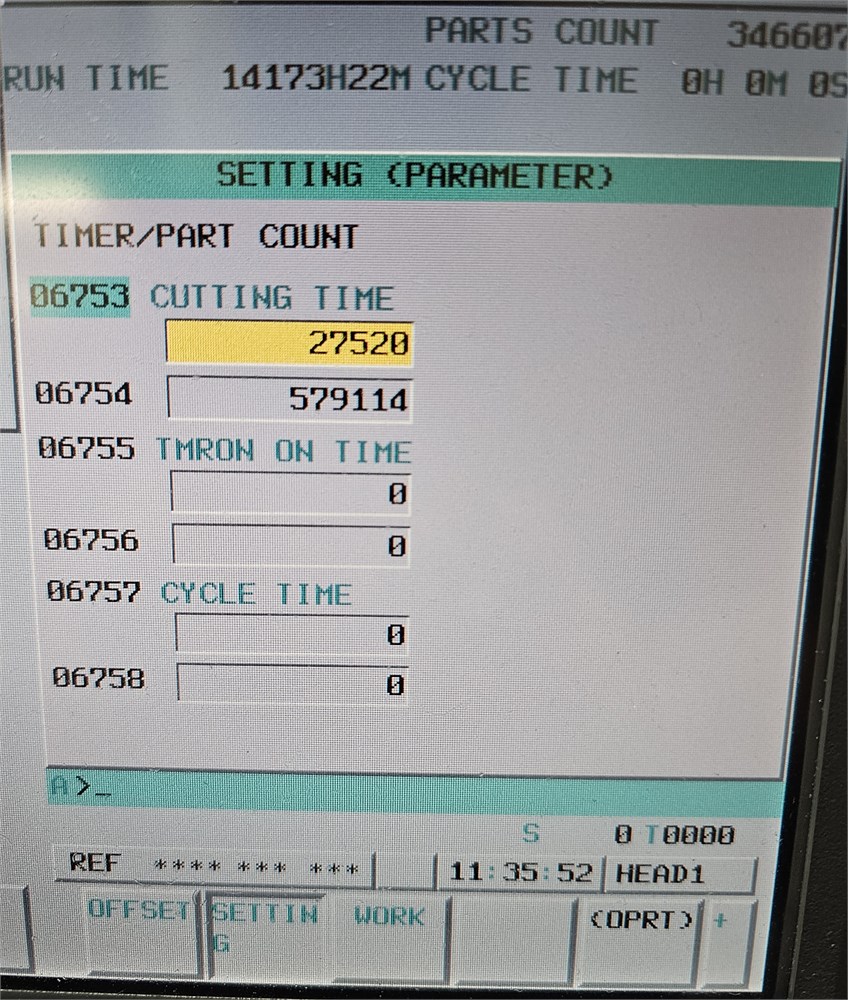

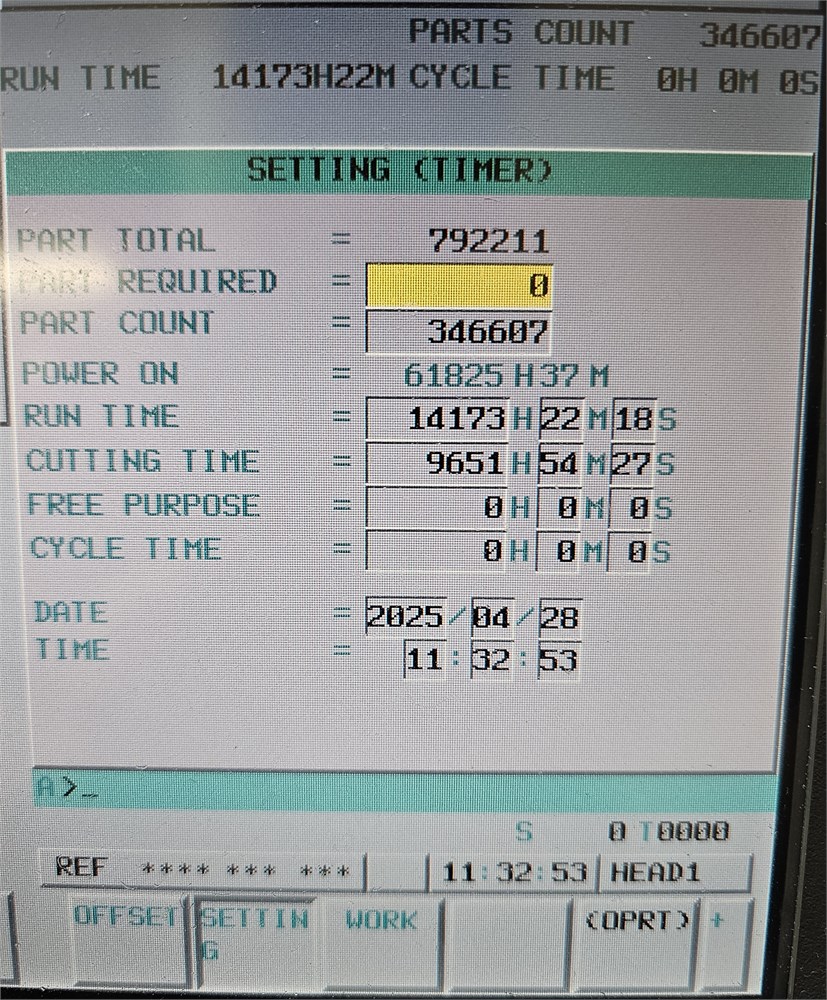

Control Type: Fanuc 31i







Equipped With



Chip Conveyor

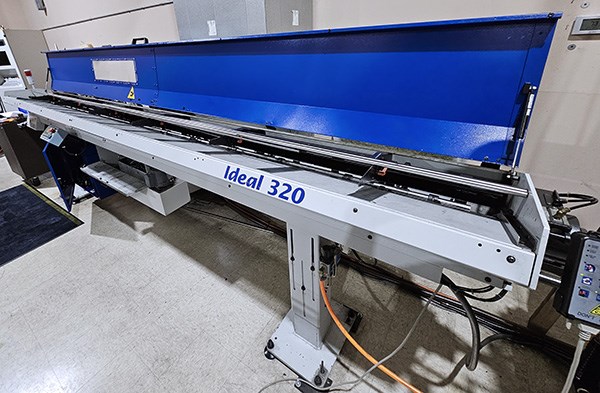

Iemca Ideal 320 Barfeeder

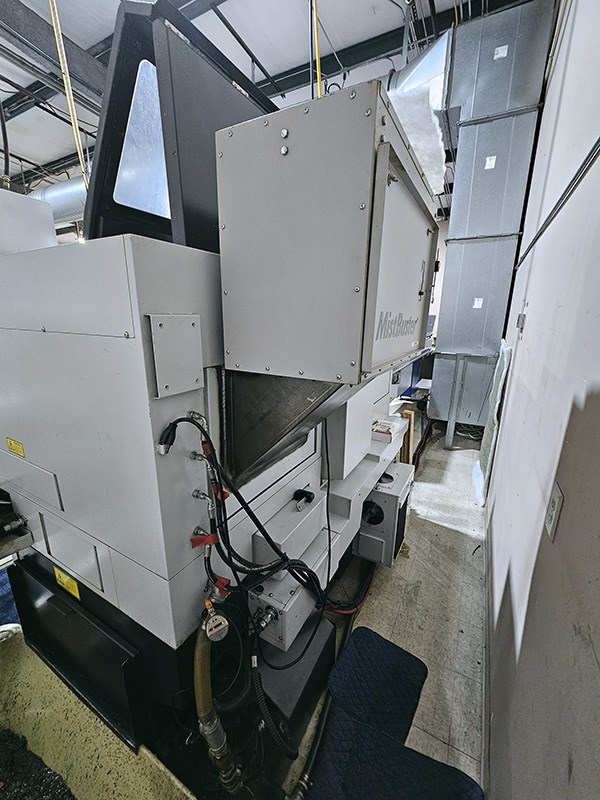

Mist Collector
