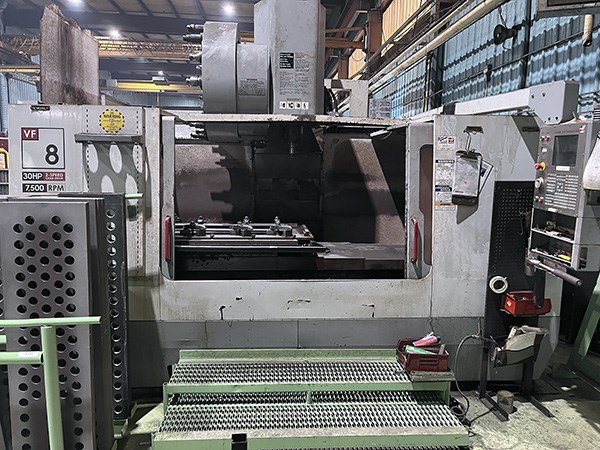

Haas VF-8/50 Vertical Machining Center (2005)

× Bidding has ended on this item.
Ended
TIMED AUCTION

300 PSI Through spindle Coolant, Servo Rotary Table

Prev Lot
  Lot # 9
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ontario
Logistics
BUYER RESPONSIBLE FOR LOADING AND FREIGHT

  • Lot # 9
  • System ID # 3853845
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3853846
Description

Haas VF-8/50 Vertical Machining Center (2005)



X-Axis Travel: 64"

Y-Axis Travel: 40"

Z-Axis Travel: 30"

Rapid Rate X Axis: 540 IPM

Rapid Rate Y Axis: 600 IPM

Rapid Rate Z Axis: 600 IPM

Max Table Load: 4,000 lbs

Spindle Motor: 30 HP

Spindle Speed: 10,000 RPM

Spindle Taper: 50 CT

Tool Changer: 24 ATC

Table Size: 64" x 36"





Equipped With

SMTC50

Gear Box

Chip Conveyor, Auger Style

Programmable Coolant Nozzle

Expanded Memory to 1 MB

Visual Quick Code Programming System

Remote Jog Handle

High-Intensity Lighting

Through spindle coolant, 300 PSI

Auxiliary Coolant Filter System

Servo Rotary Table
**Needs VFD Drive**





Dimensions: 193" x 120" x 132"

Weight: 29,000 lbs
