Simec MEC 120 CNC Tube Saw (2019)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 5
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
13 Days, 06:15:55
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Quebec

  • Lot # 5
  • System ID # 3850468
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3850469
Description

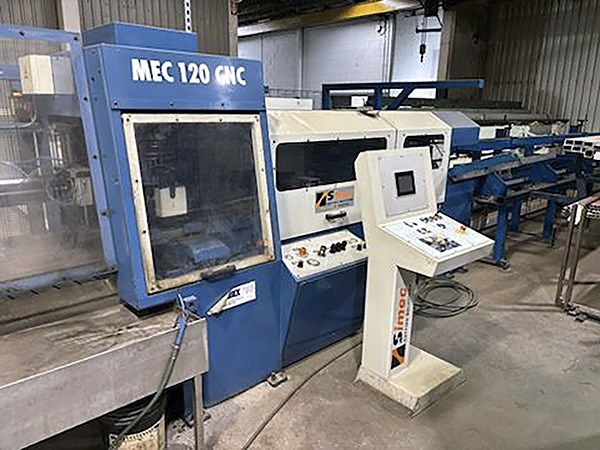

Simec MEC 120 CNC Tube Saw (2019)




Description



Round Tube: from 10mm to 100mm (0.394" - 3.94")

Square Tube: from 10 x 10mm to 90 x 90mm (0.394" x 0.394" to 3.54" x 3.54")

Rectangular: from 10 x 10mm to 120 x 80mm (0.394" x 0.394" to 4.7" x 3.15")

Bar: from 10mm to 40mm (0.394" - 1.58")

Minimum cut length: 10mm (0.394")

Maximum cut length: up to 3000mm (up to 118")

Cutting tolerance: +/- 0.2mm (0.008")

Angle cut: +/-60°

Blade diameter: from Ø250mm to Ø350mm  (9.84" -  13.78")

Cutting speed: from 30rpm to 3000rpm, depending on the material

Feeding speed of the gripper: 1.5m/s (4.9 ft/sec)

Blade motor: 2.25/ 3kw (or 4kw with inverter)

Cutting plane height: 900mm  (35.4")

Maximum vice opening: 130mm  (5.12")





Equipped With

-Straight or angle cut of tubes from minimum ø 10mm to max ø 100mm (0.394" - 3.94")

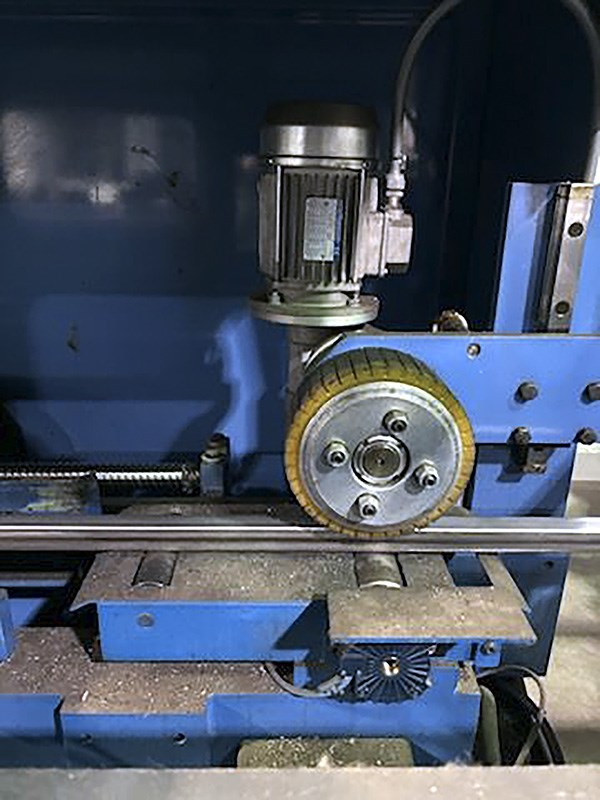

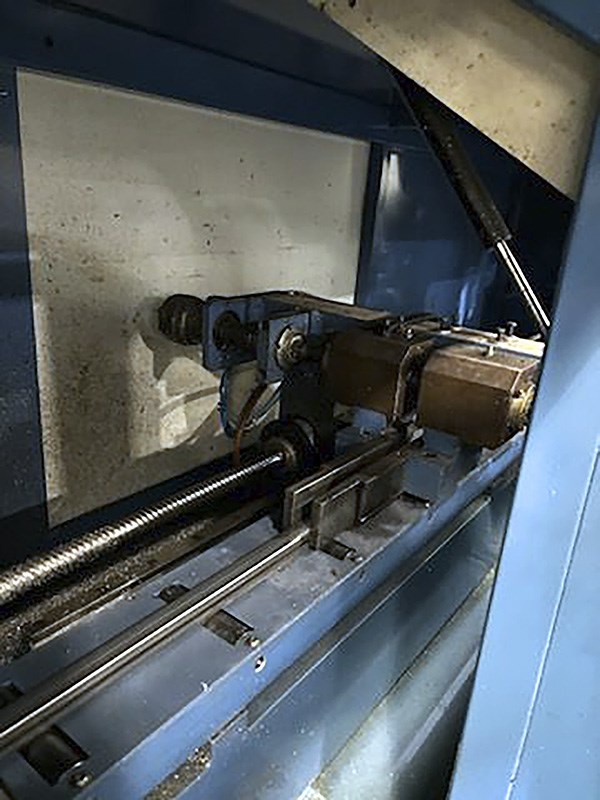

- Step by step feeding of the gripper: stroke 2000mm (78.74") through ball screw and Motor Brushless

- Automatic positioning of the feeding gripper length

- Quick release vice jaws for rapid tooling changes

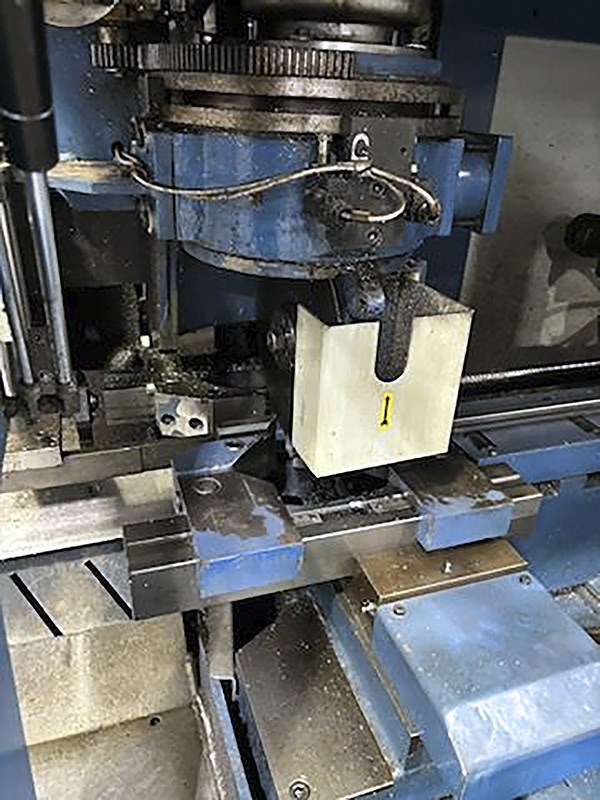

- Double clamping vices, on both sides of the saw blade

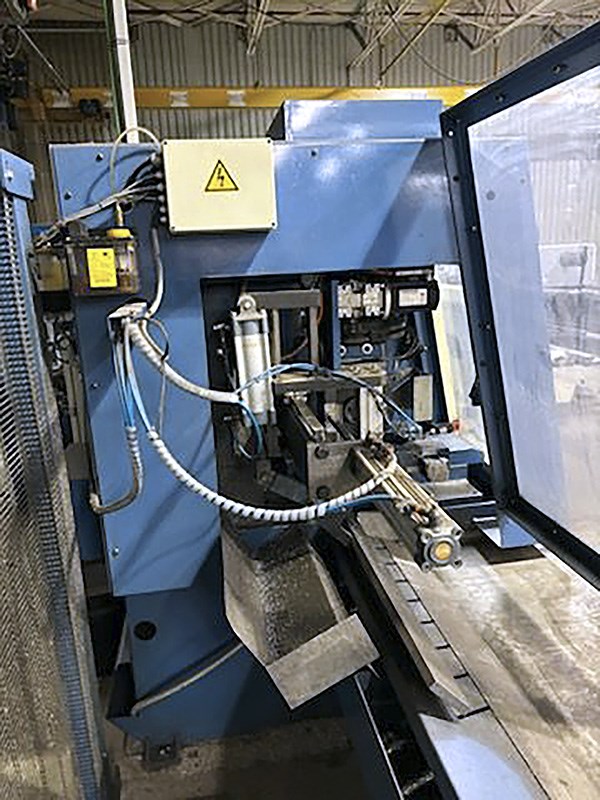

- Hydraulic clamping vice and gripper

- Vertical cutting descending from above saw head mounted on prismatic guides tempered and ground

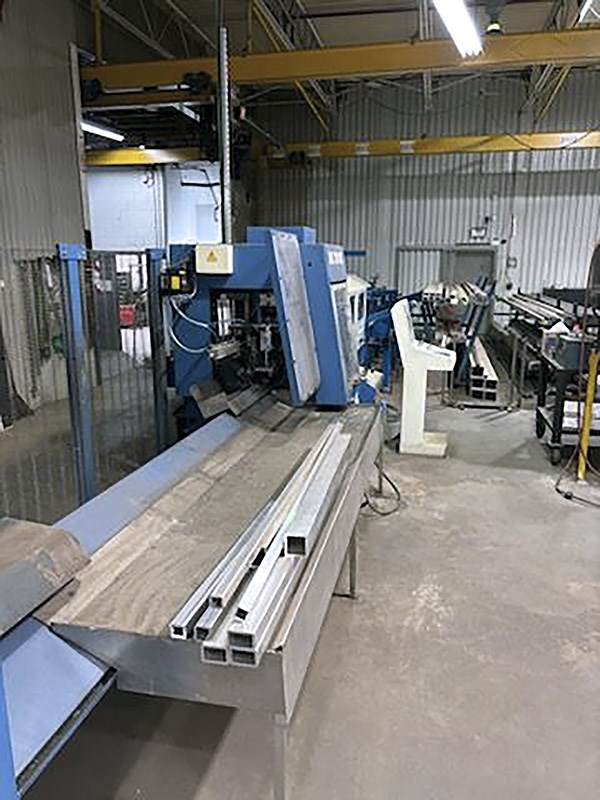

- Discharge systems with unloader cylinder plus deflector

Auto Feed

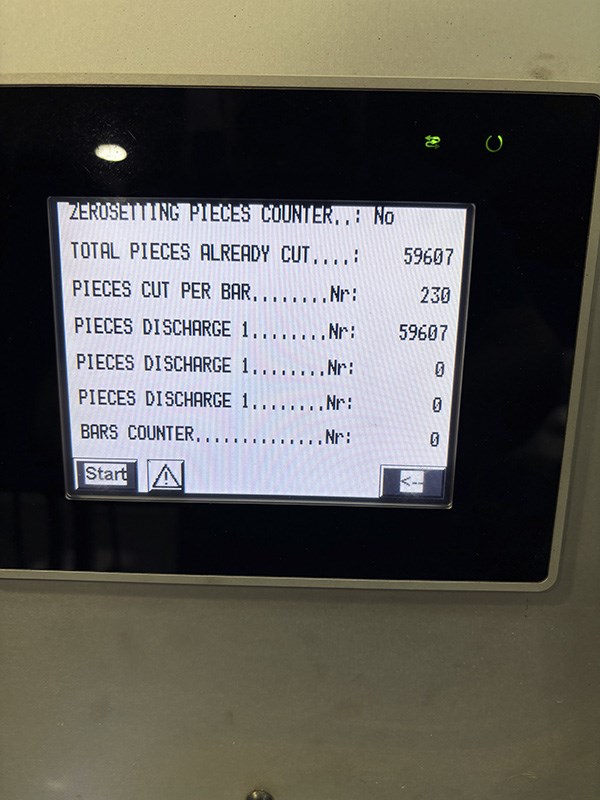

CNC Control

Tooling

Exit System

Less than 1000 hours total of usage
