Hines 300NC Tube Bender (2000)

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 1
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ontario, Canada
Logistics
Buyer responsible for Loading and Freight

  • Lot # 1
  • System ID # 3840778
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3840779
Description

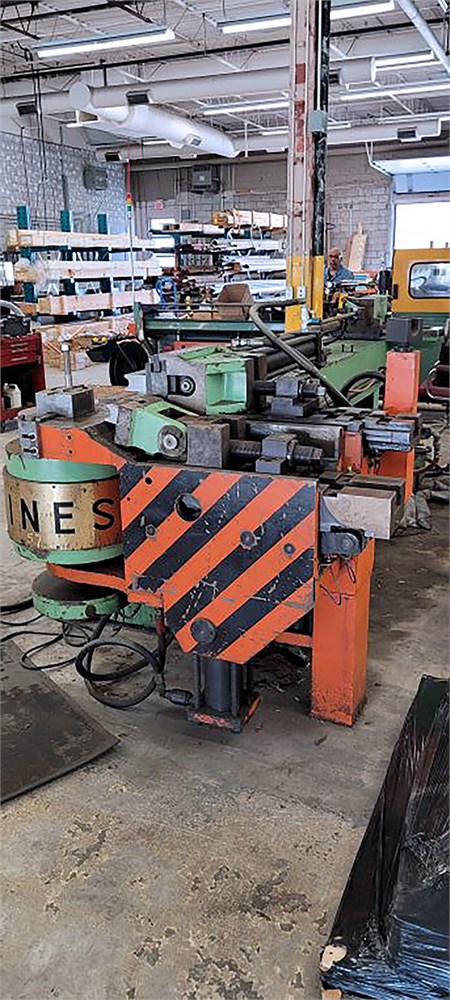

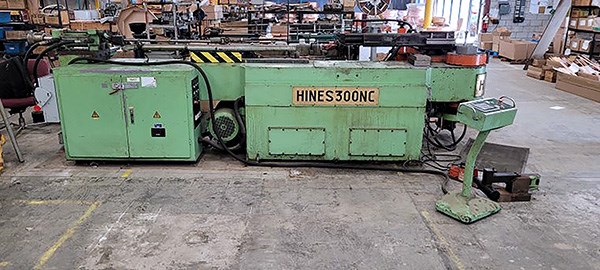

Hines 300NC Tube Bender (2000)



Description


Capacity:

Mild Steel: 4" OD X 0.95" Wall

Stainless: 3-1/2" x .145 Wall

STandard Maximum Radius: 18"

Maximum Bending Angle: 190 Degrees

Bending Arm Speed: 3.5 RPM

Bending Angle Accuracy Plus/- 0.1 Degree

Power Requirements: 220/3/60, 440/3/60






Equipped With

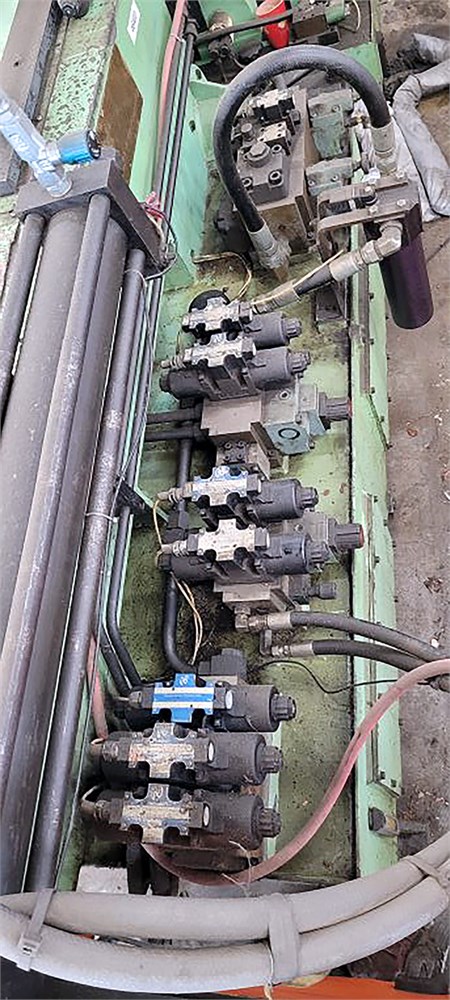

Dual Stage Pump Hydraulic System (Rebuilt in 2022)

Pressure Die Assist

Pressure Die Holder

Wiper Die Holder

Mandrel Lubricator

Tube Piece Counter

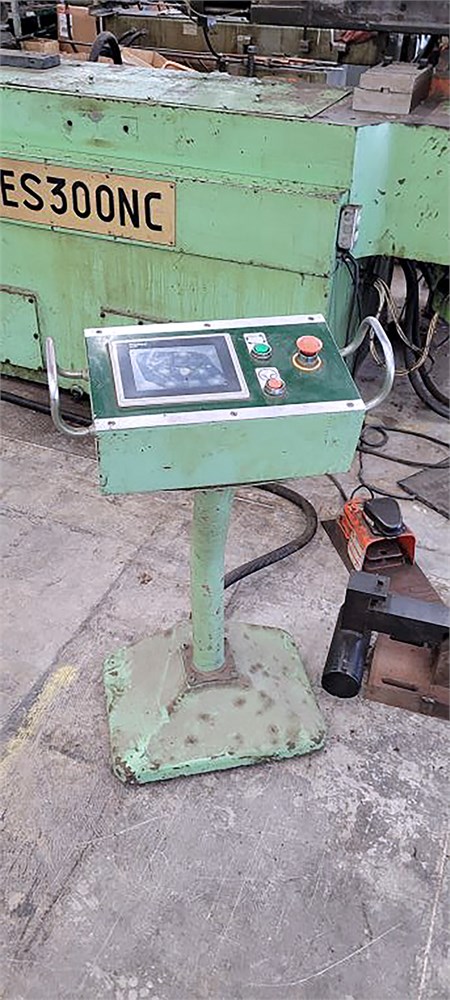

Foot Pedal Control

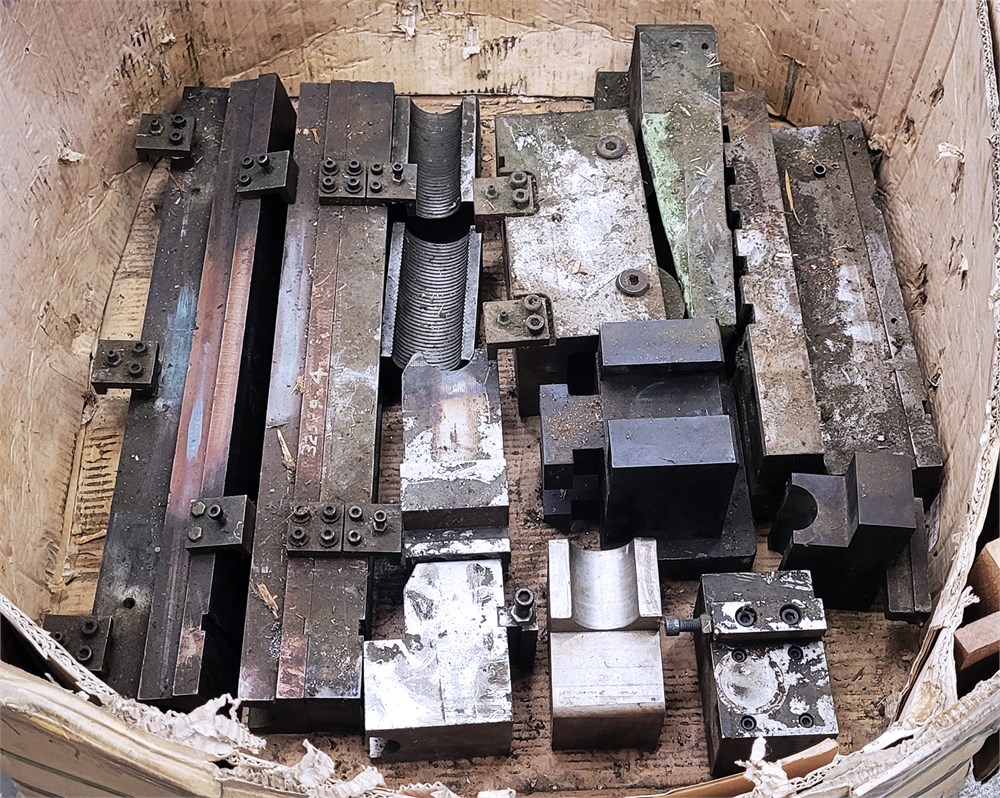

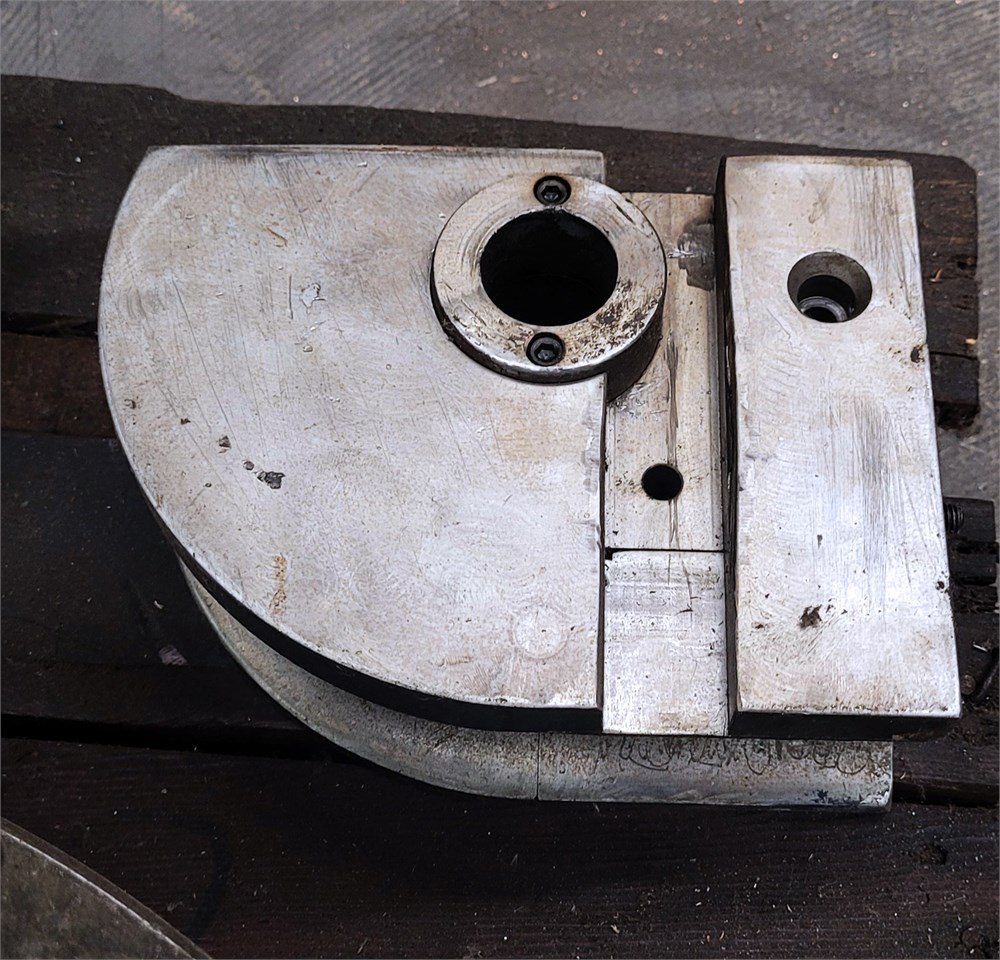

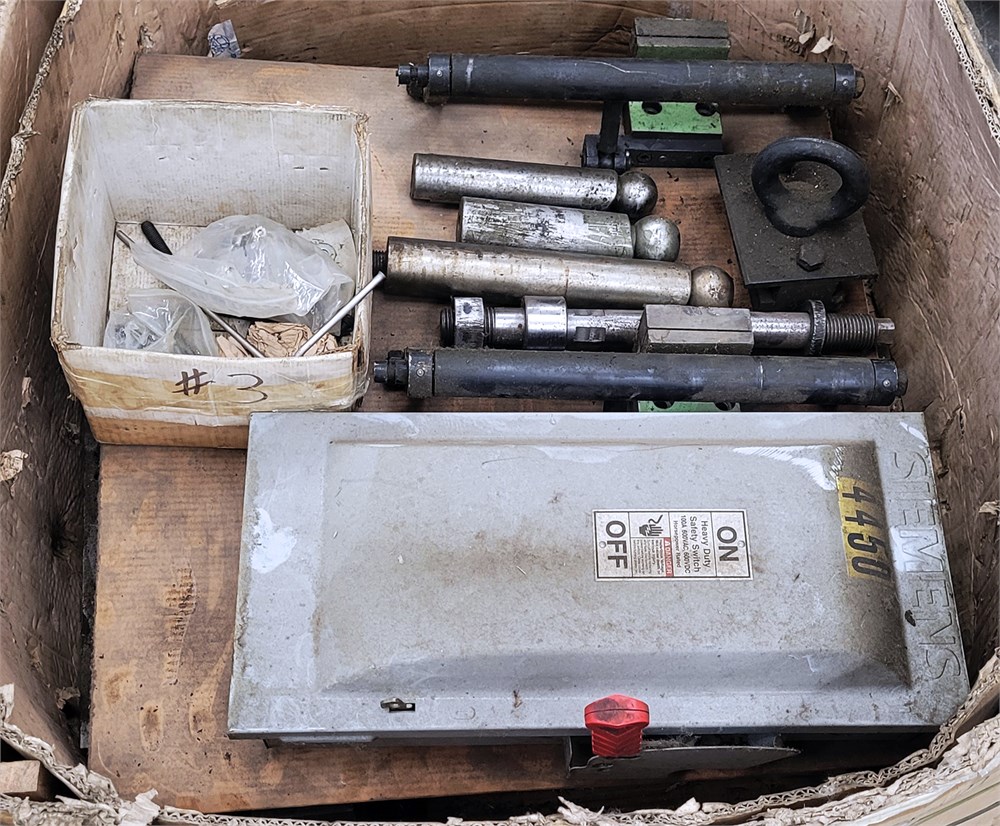

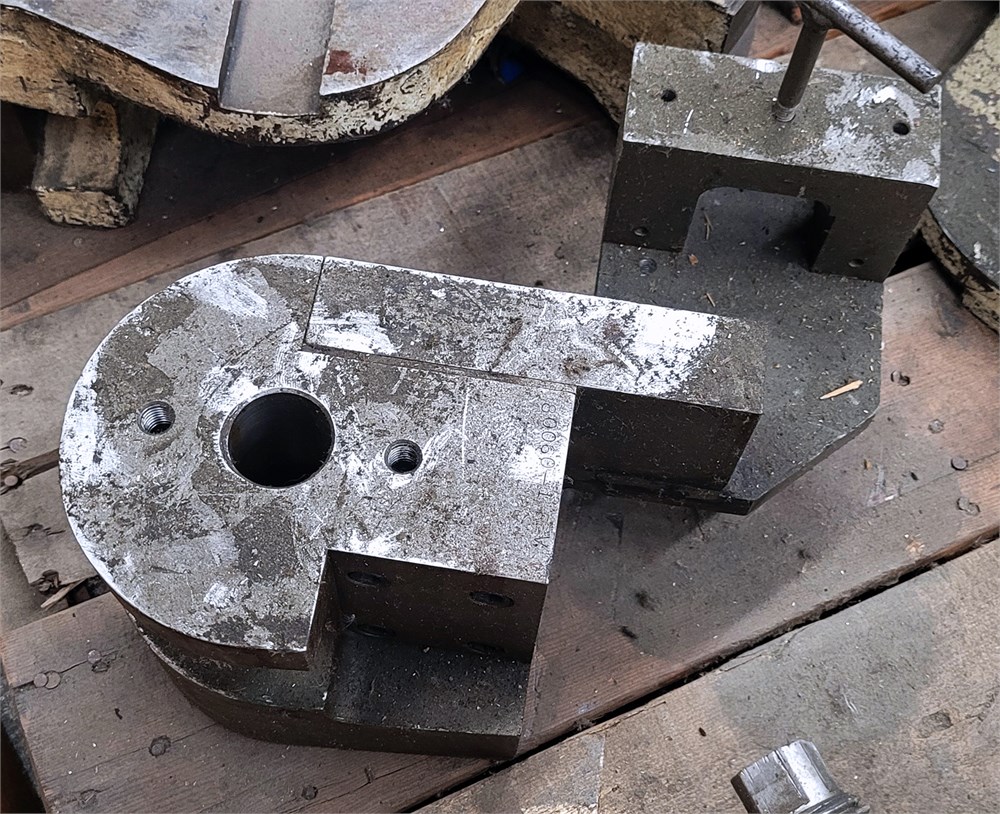

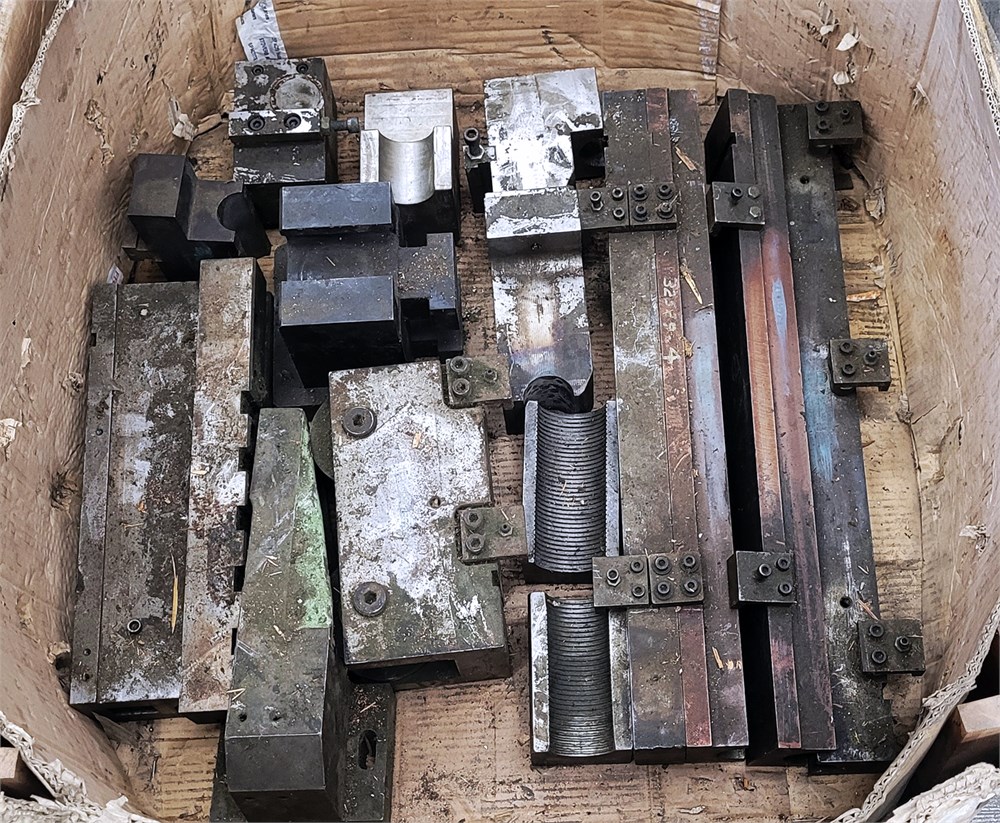

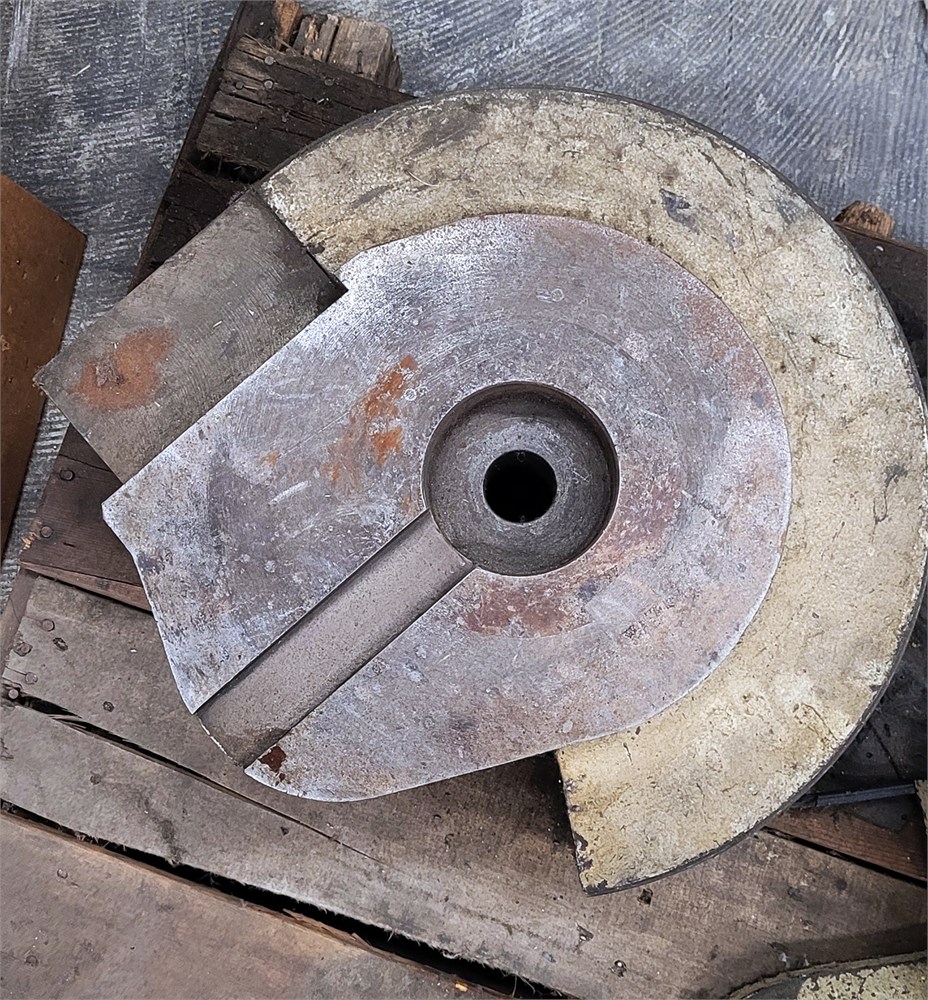

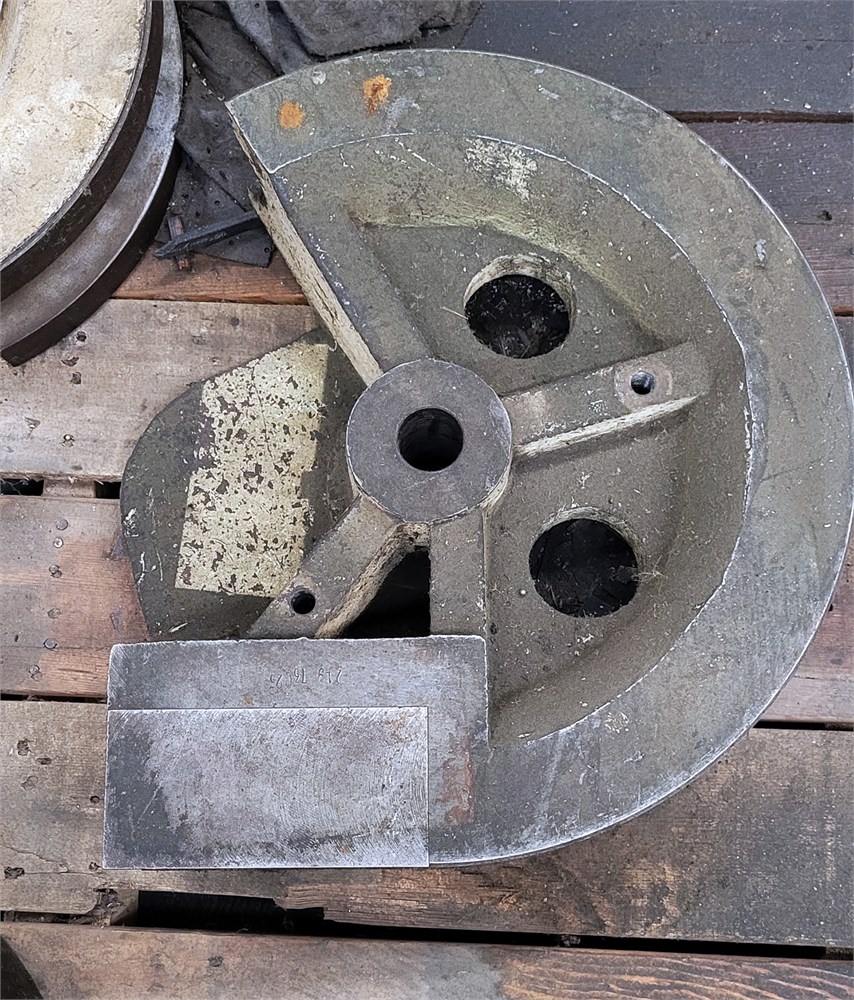

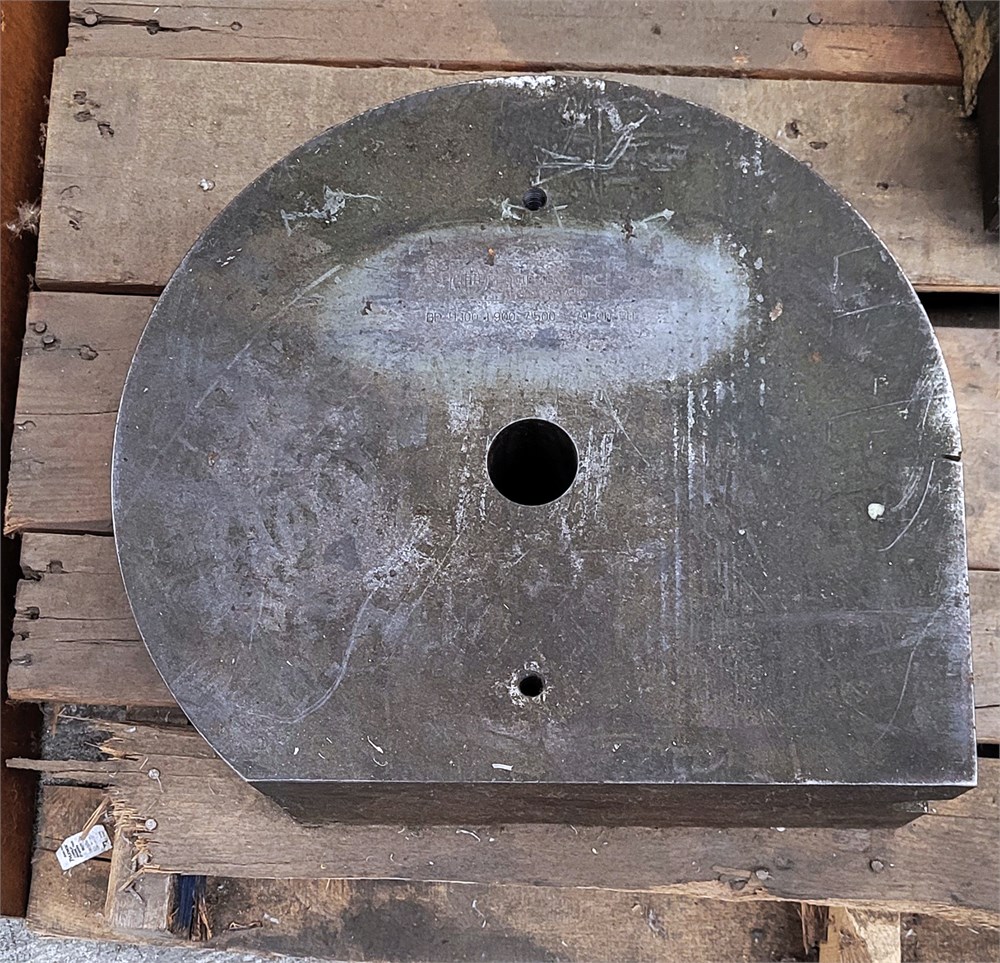

Tooling Included

All Manuals Available
