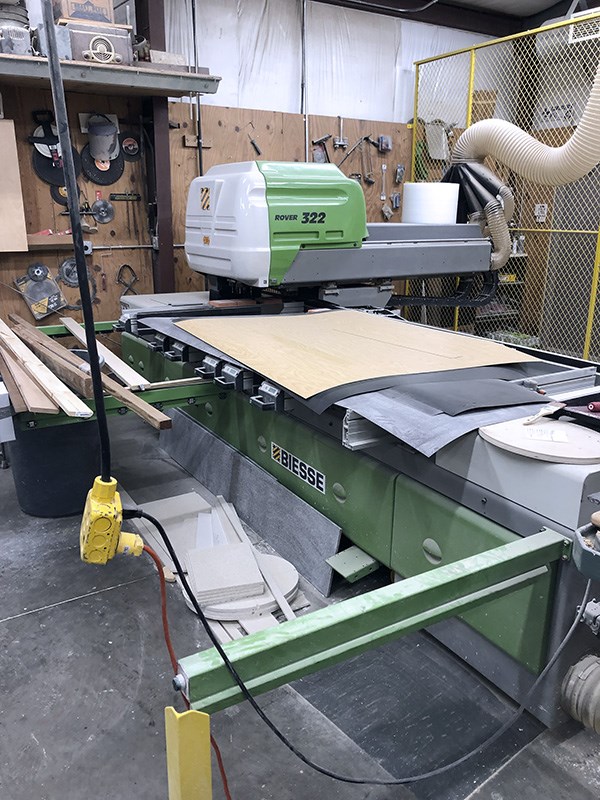

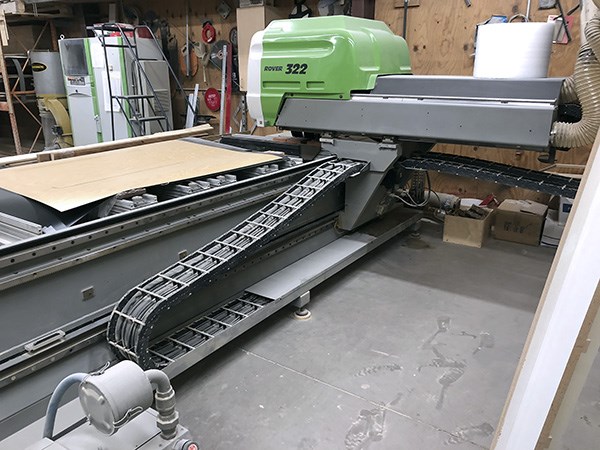

Biesse Rover 322 Machining Center (2000)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 2
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
10 Days, 17:23:20
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Iowa

  • Lot # 2
  • System ID # 3838683
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3838684
Description

Biesse Rover 322 Machining Center (2000)




Description


X-Axis is 106.2 (2,700 mm), Y-axis is 45 (1,144 mm) for routing;

X-axis is 106.2 (2,700 mm), Y-axis is 47 (1,204 mm) for boring;

travel speed on X- & Y-axis is 246 FPM and 49 FPM on Z-axis

Z axis stroke 4.9” (125 mm)

max. material thickened 4.5” (115 mm)

Positioning Speed: “X” & “Y” axis 246 FPM (75 MPM)

“Z” axis 49 FPM (15 MPM)

Work Area: (6) Adjustable panel supports with LED positioning assistance; each support with (3) matrix vacuum pods and material lifting bars, (2) pneumatic side stone, (2) pneumatic center stops, (6) backstops; (2) independent work zones

Boring Head: (2) 2 HP (1.8 kW) – 4,000 RPM motors

(26) Independent vertical spindles, (14) spindles in “X” axis & (12) spindles in “Y” axis; (8) horizontal spindles (3+3) in “X” axis & (1+1) in “Y” axis Machining: (1) 10 HP (7.5 kW)

Vertically mounted electro-spindle routers with ISO 30 adapter; (1) 7-positon tool plate mounted on the head for “on the fly” ATC.

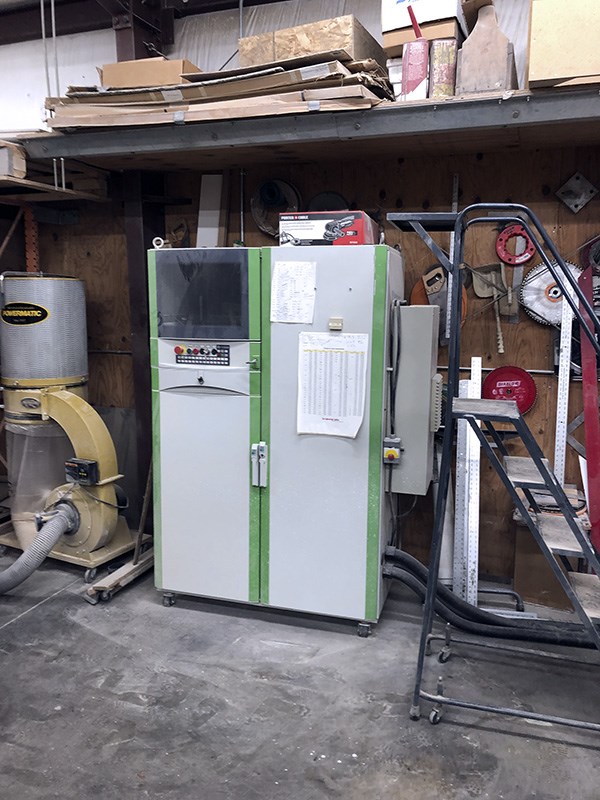

PC Front End with; Biesse “NC 500” + Windows

operating system; 512 KB RAM; 1.44MB & CD ROM disk drives

15” Color monitor, data input via standard industrial keyboard & mouse; programs can be transferred via disk or downloading by wire is possible; control housed in a sealed air-conditioned cabinet.

Complete with; Documents & manuals; 40 cbm/Hr Vacuum pump; forced lubrication system; auto - transformer for voltages from 200 V – 600 V; safety light barrier.

Electric: 200-600 V 50/60 Cy, 3 Ph





Equipped With

(2) PC's

Automatic Tool Changer

Transformer

Options include: An

assortment of tooling, collets, & parts; Biesse CIM programming software.

~~ Software Disclaimer: Seller offers NO warranty or support written or implied concerning any/all “optional” or “additional” manufacturer or 3rd party software supplied with this machine. All software related issues including re-licensing fees/requirements/functionality & training are ultimately the sole responsibility of the “Buyer”.
