Machine Details
Location: Duquoin, Illinois
Logistics: There will be a loading cost of $750.00 and will be automatically included on the sales invoice.
Lot #: 16
End Date: Wednesday, December 4, 2024 6:39 PM Central Standard Time
Start Date: Thursday, November 7, 2024 7:32 PM Central Standard Time
Item #: 3618574
Machine Description

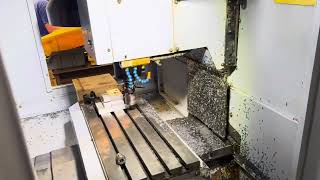

Sharp SV 2412 Vertical Machining Center (2004)




X Axis Travel: 24"
Y Axis Travel: 12"
Z Axis Travel: 18"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Spindle Motor: 10 HP
Spindle Speed: 8,000 RPM
Spindle Taper: CAT 40 CT
Tool Changer: 10 ATC
Table Size: 28" x 12"
Max weight on Table: 800 lbs



Equipped With:



Fanuc 0i-MC CNC Control
Box Way Construction All Axis
10 Station Automatic tool changer
40 Taper Spindle
10 HP Spindle Motor
Spindle Orientation
Rigid Tapping
RS-232 Port
PCMCIA Card Slot
MPG Handwheel Control
Chip Conveyor
Telescopic way covers




Dimensions: 68" x 68" x 87"
Weight: 4,600 LBS
