LIVE WEBCAST
Nov. 20 Single Facility: Surplus to Ongoing Production of Knox Western
schedule Auction Ends: 11/20/2024 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended LIVE WEBCAST
Prev Lot
LOT  69
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Erie,Pennsylvania
Logistics: A LOADING COST OF $1100 WILL BE AUTOMATICALLY ADDED TO THE WINNING INVOICE. BUYER RESPONSIBLE FOR ALL TRANSPORTATION COSTS.
Lot #: 69
Item #: 3475690
Machine Description

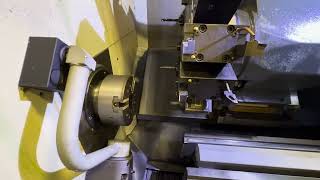

Haas DS-30Y (2017)



S/N 3108789

X-Axis Travel....9.4"
Y-Axis Travel....+-2"
Z-Axis Travel....32"
Chuck Size....10"
Max. Part Swing....21"
Max. Cutting Diameter....13.75"
Max. Cutting Length....32.5"
Bar Capacity....3"
Spindle Nose....A2-6
Max. Spindle Motor HP....30hp
Max. Spindle RPM....4500RPM
Draw Tube Bore....3"
Spindle Bore....3.5"
Main Spindle C-Axis Max. Speed....60RPM
Main Spindle C-Axis Motor HP....5HP
Secondary Spindle Chuck Size....8"
Secondary Spindle Nose....A2-5
Max. Motor HP....15HP
Max Spindle RPM....4000RPM



Equipped With:



Dual Spindle
Y-Axis
Tool Presetter
Chip Conveyor
