Mazak Nexus 6800-II (2013)

× Bidding has ended on this item.
Ended
LIVE WEBCAST

6750 Hours, Full 4th Axis, 1000 PSI Through Spindle Coolant

  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Erie, Pennsylvania
Logistics
A LOADING COST OF $2500 WILL BE AUTOMATICALLY ADDED TO THE WINNING INVOICE. BUYER RESPONSIBLE FOR ALL TRANSPORTATION COSTS.

  • Lot # 50
  • System ID # 3475186
  • Item # 3475187
Description

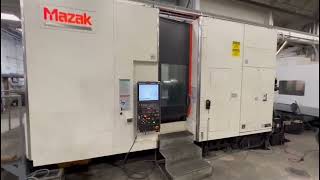

Mazak Nexus 6800-II (2013)



S/N 246020, CAPACITY

X-Axis Travel....41.34"
Y-Axis Travel....35.43"
Z-Axis Travel....38.58"
B-Axis Travel....360,000
Table Indexing....0.001
Max. Workpiece Diameter....41.7"
Max. Workpiece Height....51.1"
Spindle Taper CAT 50
Max. Spindle Motor HP....50hp
Max. Spindle RPM....8,000RPM
ATC Capacity....60
Number of Pallets....2
Pallet Size....24.8" x 24.8"
Max. Pallet Load Capacity....3307lbs

Length 5,741 mm, 43780 LBS,(Tombstones Not Included)



Equipped With:



Mazatrol Matrix Nexus 2 Control
6750 Total Cut Time Hours
Full 4th Axis
Renishaw Probe
Tool Presetter
1000 PSI Through Spindle Coolant
Chip Conveyor
