Machine Details
Location: Milwaukee, WI
Logistics: There will be a loading cost of $800.00 and will be automatically included on the sales invoice.
Lot #: 6
End Date: Wednesday, October 9, 2024 4:25 PM Central Standard Time
Start Date: Wednesday, September 18, 2024 5:01 PM Central Standard Time
Item #: 3379188
Machine Description

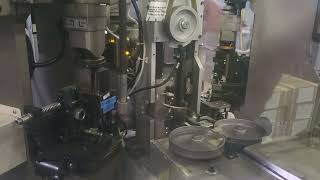

Schleuniger Crimp Center 12 (2004)



Application Range-
Processable wire: single conductor
Wire size range: 26 AWG (0.14 mm^2) – 10 AWG (6mm^2)
Wire O.D: 0.220” (5.5.mm) max.
Insulation types: PVC, XLPVC, Kynar, Teflon, Tefzel, Silicon, etc.

Operating Parameters-
Programmable length: 1.96”-328’ (50-99,999mm)
Min. Cutting Length: 1.96” (50mm)
Crimping Force: 3.5 tons max

Power Supply: 208/220/240 volt single phase- 50/60 Hz
Air Supply: 4 to 8 bar (60 – 120 PSI)

Machine Dimensions: 110” L x 55” W x 78” H
