Machine Details
Location: Shawnee, Oklahoma
Logistics: There will be a loading cost of $1,200.00 and will be automatically included on the sales invoice.
Lot #: 30
End Date: Wednesday, August 28, 2024 6:25 PM Central Standard Time
Start Date: Wednesday, June 26, 2024 4:00 PM Central Standard Time
Item #: 3327906
Machine Description

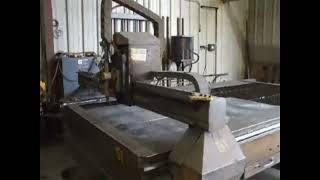

MultiCam 3000 Series Plasma Cutter (2005)



Z-Axis Clearance: 4"
Z-Axis Travel: 6"
Repeatability: +/- .001"
Positional Displacement Accuracy:+/- 0.005"
over 10 feet
Cutting Speed: 1,000 ipm*
Rapid Traverse: 1,700 ipm*
Drive System X and Y axis: Rack and Pinion
Drive System Z axis: Lead Screw
Standard Work Surface: Downdraft table
High-Speed contouring
Fully programmable retract between parts.
Automatic initial pierce height
User-friendly MultiCam Controller
Material Database
Precision dual X-axis drives
Stress-relieved heavy duty all steel
construction.
25 mm linear ball bearing profile rails for
maximum stiffness
8 Megabytes of Memory with unlimited file
size transfer capabilities
Standard Ethernet or RS232 direct
connections
Loading capacity: up to 4 inch thick steel
Cutting Speed: 1,000 ipm
Rapid Traverse (X and Y): 1,700 ipm
The gantry is made of a 3/8” thick steel tube that is
welded, stress-relieved, and precision machined. The
gantry has been engineered to provide a smooth,
vibration free cut.


Equipped with:
Hypertherm Powermax 1650
Cut capacity: 1.5"
Gouge Capacity: Metal removed per hour: 24 lbs
Depth x width: 3/16" x 1/8"
