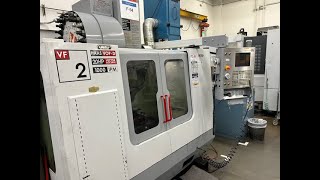

Haas VF-2D Vertical Machining Center (2005)

× Bidding has ended on this item.
Ended
TIMED AUCTION

7500 RPM, 1000 IPM, 4th Axis Drive & Wiring, WIPS

Prev Lot
  Lot # 9
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Palo Alto, CA
Logistics
There will be a loading cost of $900.00 and will be automatically included on the sales invoice.

  • Lot # 9
  • System ID # 3283213
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3283214
Description

Haas VF-2D Vertical Machining Center (2005)



X AXIS TRAVEL: 30"
Y AXIS TRAVEL: 16"
Z AXIS TRAVEL: 20"
TABLE SIZE: 36" X 14"
MAX TABLE LOAD: 3,000 LBS
SPINDLE MOTOR: 20 HP
SPINDLE SPEED: 7,500 RPM
SPINDLE TAPER: 40 CT
TOOL CHANGER: 21 ATC
MAX TOOL DIAMETER 3.5"
MAX TOOL WEIGHT 12 LB




Equipped With:



4th axis drive and wiring
Chip Auger System
Tool Holders (20 count)
Remote Jog Handle
Programmable Coolant Nozzle
1 MB Memory
Visual Quick Code Programming
Coordinate Rotation and Scaling
User Defined Macros and Side Mounted Tool Changer (24 + 1)
Visual Quick Probing System: Includes Tool offset Probe, workpiece prove and software template



DIMENSIONS: 101" X 98" X 102"
WEIGHT: 7,800 LBS
