TIMED AUCTION
Aug 13 Mid-Month Multi-Facility CNC & Fab No Reserve Auction
schedule Auction Ends: 8/13/2024 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  8
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Palo Alto, CA
Logistics: A loading fee of $1,500.00 will be added to the winning invoice. Must be removed Aug 19th.
Lot #: 8
End Date: Tuesday, August 13, 2024 5:15 PM Central Standard Time
Start Date: Wednesday, July 31, 2024 4:00 PM Central Standard Time
Item #: 3234193
Machine Description

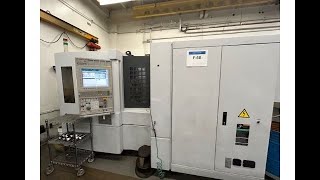

Mori Seiki NH4000 DCG Horizontal Machining Center (2010)



Full 4th axis 60 ATC 14,000 RPM w/ Coolant Thru Spindle, Upgraded Laser Tool Setter and Memory



X-axis Travel: 22"
Y-axis Travel: 22"
Z-axis Travels: 24.8"
Pallet working surface: 15.7" x 15.7"
Pallet loading capacity: 880 lbs
Max workpiece swing diameter: 24.8"
Spindle Max RPM: 14,000
CAT 40 taper
Rapid Traverse Rate: 1968.5 ipm
ATC: 60
Max tool length: 15.7"
Max Tool mass: 17.6 lbs
APC: Number of Pallets: 2
Method of Pallet change: Turn Type
Pallet changing time: 6 sec



Equipped With:



Chip Conveyor
Coolant thru Spindle
Misc Tool Holders
1 Additional Pallet
Coolant Tank
Upgraded Memory to 8KB
Upgraded Laser Tool Setter
Full 4th Axis Rotary Table





Dimensions:

Machine Height: 103"
Width x depth: 91" x 155"


Weight of Machine: 22,000 lbs
