Supertec PSGP-1530AHR Surface Grinder (2009)

× Bidding has ended on this item.
Ended
TIMED AUCTION

75" x 124" Max Travel, 1150 RPM Spindle speed, 230V, 60Hz, 25HP Electricals

  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Coldwater, MI
Logistics
BUYER RESPONSIBLE FOR LOADING AND FREIGHT

  • Lot # 1
  • System ID # 3188558
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3188559
Description

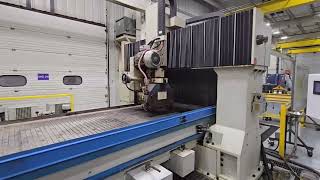

Supertec PSGP-1530AHR Surface Grinder (2009)



Type: Double Column Surface Grinder
Max Travel: 75" x 124"
Wheel bottom to table: 3.93" - 31.5"
Vertical Head: 13.77" x 53.15"
Spindle Center height from table: 53.15"
maximum height from table top to bottom of wheel: 33.50"
Grinding surface of table: 60" x 120"
Clearance between columns: 78.70"
Continuous cross feed movement: 118" per min
hand feed per revolution: .40"
hand feed per division: .002"
Rapid traverse vertical downfeed: 8.66" per min
Grinding Wheel Dimensions: 20.08" x 3.94" x 8.00"
Spindle Speed: 1150 RPM
Hydraulic Motor: 13kW/10HP
Electrical: 230V, 60Hz, 25HP


Machine Dimensions: 27.50" x 11.50" x 12.50"
Weight: 40,000 lbs
