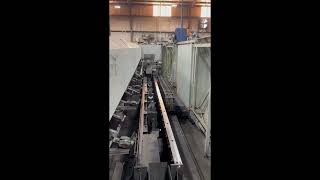

BLM LTFiber Fiber Tube Laser (2012)


Tube Size Capability
Round- .472" - 5.511"
Square-.472" - 4.724"
Rectangular -.394" - 5.512"
Tube Lengths
Minimum Bar Length For Automatic Loading 10.499'
Minimum Bar Length For Manual Loading With Scrap Reduction (3.071" / 3.66") Without Scrap Reduction (7.559" / 8.150")
Maximum Bar Length For Automatic Loading 28'
Maximum Bar Length For Manual Loading 28'
Tube Discharge
Maximum Length For Small Part/Scrap Conveyor 11.811"
Minimum Length For Unloader 5.906"
Bundle Loader
Maximum 8000lbs Across All Cradles - Maximum 5000lbs Recommended
Tube Weight
Maximum 10.079 lbs/ft
Maximum Automatic Part Unload 185"
U-Axis Maximum Movement 12"
Max Tube Length 330"
Max Clamp Opening 5"
Minimum Clamping .5"

Equipped With:
2kw IPG Fiber Resonator
Donaldson Dust Collector
Riedel Chiller
Finished Parts Conveyor
Rear Scrap Conveyor
Tube Spatter Catcher

Decommissioned by BLM on 10/10/2023. Decommission report available upon request.
