Machine Description

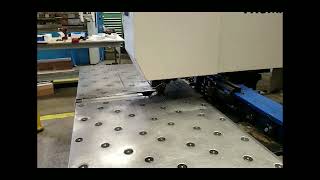

Trumpf Trumatic 120R CNC Punch (1991)


Maximum force (pressing) – 15 tons
Maximum thickness of the sheet metal – 3/16” Steel
Maximum travel length X-axis – 40” but will reposition to punch larger pieces
Maximum travel length Y-axis – 40”
Maximum length of the sheet metal (X) – We have had a 48" x 96" sheet on it with an extra table beside it
Maximum width of the sheet metal (Y) -- 40”
Maximum punching speed (impacts/minute) – 320/min.
Machine height – 78” counting lifting lug
Machine length – 122”
Machine width – 96” – Table is 92”


Equipped with:
Bosch Trumagraph CC 220S Control
Mains supply 460v/60Hz
Connected Load 9kVA
Control Voltage 24VDC
Full Current Load 35A
Air Supply 95PSI




Machine Weight –9,480lbs/ 4300 Kg
