Machine Details
Location: Ponce, Puerto Rico
Lot #: 53
Item #: 1999239
Machine Description

Haas Multigrind AF CNC Grinding Center (2009)

 S/N: 2991

Grinding Length: 11.810"
OD Max Grinding Diameter(s): 4.720"
Table Length Dimension: 39.300"
Table Width Dimension: 10.630"
Grinding Wheel And Spindle Wheel Head: Motor: 19.280hp
RPM: 8,000
ongitudinal: 11.810"
Cross: 21.260"
Vertical: 11.810"

Equipped with
Siemens Sinumerik 840D CNC Grind Control

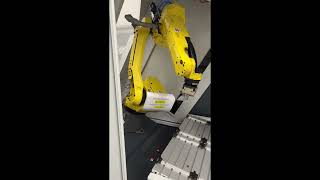

Fanuc 5 Axis CNC Robotic Load/Unload
Fanuc System R-30A Control
Gravitation Parts Table
Coolant System with Temptek Chiller Unit


SINUMERIK PCU50.3 Version V05.01.11
840D Powerline V08.00.02.01

Version data NCU
07.04.20 840D 12A  62
HMI Version Windows XP 06.04.32.04



APPROX Dimensions: 160" x 120" x 120"
