Haas Multigrind AF CNC Grinding Center (2009)

× Bidding has ended on this item.
Ended
LIVE WEBCAST

Fanuc 5 Axis CNC Robotic Load/Unload, Coolant System with Temptek Chiller Unit

  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ponce, Puerto Rico

  • Lot # 52
  • System ID # 1999203
  • Item # 1999204
Description

Haas Multigrind AF CNC Grinding Center (2009)

S/N: 2990

Grinding Length: 11.810"
OD Max Grinding Diameter(s): 4.720"
Table Length Dimension: 39.300"
Table Width Dimension: 10.630"
Grinding Wheel And Spindle Wheel Head: Motor: 19.280hp
RPM: 8,000
Longitudinal: 11.810"
Cross: 21.260"
Vertical: 11.810"

Equipped with
Siemens Sinumerik 840D CNC Grind Control
Fanuc 5 Axis CNC Robotic Load/Unload
Fanuc System R-30A Control
Gravitation Parts Table

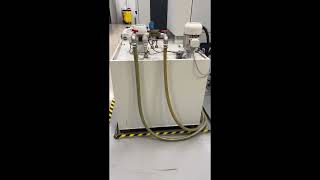

Coolant System with Temptek Chiller Unit



SINUMERIK PCU50.3 Version V05.01.11
840D Powerline V08.00.02.01

Version data NCU
07.04.20 840D 12A  62
HMI Version Windows XP 06.04.32.04


APPROX Dimensions: 160" x 120" x 120"
