Star SV-12 CNC Swiss Type Screw Machine (2008)

× Bidding has ended on this item.
Ended

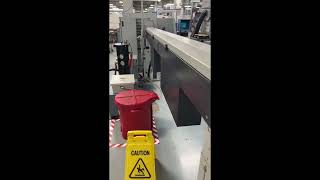

LIVE WEBCAST

LNS Express 220 Bar Feed, Chip Conveyor, Fine Filter Coolant

Prev Lot
  Lot # 49
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ponce, Puerto Rico

  • Lot # 49
  • System ID # 1999097
  • Item # 1999098
Description

Star SV-12 CNC Swiss Type Screw Machine (2008)

S/N: 0997

Main Spindle Turning Diameter Max: 0.500"
Main Spindle Turning Length Max: 8.000"
Main Spindle Bar Diameter Max: 0.500"
Main Spindle Bar Diameter Opt: 0.500"
Sub Spindle Turning Diameter Max: 0.500"
Sub Spindle Turning Length Max: 5.130"
Tail Stock Quill And Body: None
Single Spindle Num. Main Spindles: 1 Main Spindle 1: RPM: 12,000 HP: 4.90 Index Increment

RPM Opt: HP Opt: Main Spindle 2: RPM: 12,000 HP: 4.90 Index Increment: RPM Opt: HP Opt
Sub Spindle (Optional): RPM: 12,000 HP
4.90 Index Increment: Tooling Primary Tool Carrier: SLIDE Max Tools: Turning: Rotary

5 3 Rotary Tool: HP: RPM: 0.70 6,000
Second Tool Carrier: TURRET Max Tools: Turning: Rotary: 8 3 Rotary Tool: HP: RPM: 1.00 5,750
Num. Simultaneous Cutting Tools: 2 Num. Simultaneous Cutting Tools Opt: 3

Secondary Mill/Drill Function: On-Center Off-Center With 'C' Axis With 'Y' Axis

Equipped with:
Fanuc 16iT CNC Control
LNS Express 220 Bar Feed: S/N 135526
Chip Conveyor
Fine Filter Coolant

Dimensions: 2670W X 1375D X 1660H mm; Barfeed: 12' x 4' x 4'
