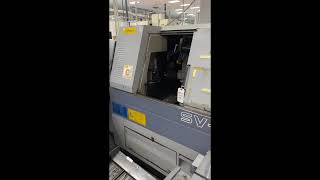

Star SV20 Type 420 CNC Swiss Type Screw Machine (2008)

× Bidding has ended on this item.
Ended
LIVE WEBCAST

Single Barfeed, Chip Conveyor, Full C-Axis

  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ponce, Puerto Rico

  • Lot # 43
  • System ID # 1998881
  • Item # 1998882
Description

Star SV20 Type 420 CNC Swiss Type Screw Machine (2008)

S/N: 011092

Max Turning Diameter: 20mm (25/32")
Headstock Stroke: 8"
Main Spindle: Headstock Spindle Speeds: 500 - 10,000 rpm
Spindle Indexing: .01 deg (full C-axis)
Spindle Motor: 3.7Kw (cont)/5.5kw (30 min) main
Spindle Bore Diameter: 1"
Drilling Capacity: Stationary Tool: 35/64"' Power Driven Tool: 5/16"
Number of Tools: Gang Plate 5 (12mm) Tools (4 tools opt/16mm)
3 Power-driven Turret: 8 Stations,12mm Tool if 3 tool/station opt, 16mm Tool if 1 tool/station opt
Tapping Capacity: Turret M10 x P1.5; Power Driven Tool Gang Tool Post M6 x P1.0

Milling Capacity: 10mm (25/64")
Max. Die Cutting Capacity: M10 x P1.5 Gang Tool Post Power Driven Tool: 6,000 rpm
Motor 0.5Kw (servo drive); Power Consumption: 9 KVA


Backworking Attachment: Max. Chucking Cap.: 20mm (25/32")
Drilling Capacity: 3/8"
Tapping Capacity: M8 x P1.25
Sub Spindle Indexing: 15 degree
Spindle Speeds: 500 - 10,000 rpm
Sub-spindle motor: 2.2Kw(continuous)/3.7Kw(15min)

Equipped with:
Fanuc 16T CNC Control
Single Barfeed
Chip Conveyor
Tooling
Filtermist Collector

Dimensions (approx.): 104"l x 55"w x 66"h
