Machine Details
Machine Description

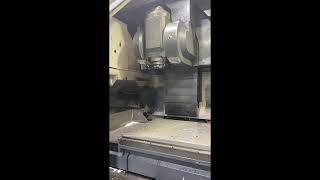

Okuma Millac 853PF-5X Five Axis Machining Center (2008)
S/N: 83042
New (10/2008)
TABLE DIMENSIONS 126" X 33.5"
X-AXIS TRAVEL 120.08"
Y-AXIS TRAVEL 33.46"
B-AXIS TRAVEL 35"
Z-AXIS TRAVEL 27.56"
A-AXIS TRAVEL 35"
COOLANT PUMP MOTOR 2.9 HP
TOOL CHANGE TIME (T - T / C - C) 9 / 16
MAX TOOL WEIGHT 44 LBS.
MAX TOOL LENGTH 13.78"
TOOL CHANGER 30 ATC
SPINDLE BEARING I.D.: 3.54"
SPINDLE DRIVE MOTOR 75 HP
SPINDLE SPEED RANGE 60 -12,000 RPM
SPINDLE BORE TAPER CAT 50
SPINDLE CENTER TO COLUMN 36.61" (SLIDEWAY)
SPINDLE NOSE TO TABLE 5.91" - 33.46"
MAX TABLE LOAD 6,600 LBS.
COOLANT TANK 396 GAL.
SPINDLE CENTER TO COLUMN SLIDEWAY 36.61"
X-AXIS BALLSCREW DIA./PITCH 2.48" / 0.42"
Y-AXIS BALLSCREW DIA./PITCH 1.97" / 0.63"
Z-AXIS BALLSCREW DIA./PITCC 1.97" / 0.47"
X, Y, Z AXIS THRUSTS 3,527 LBS.
RAPID TRAVERSE (X/Y AXIS) 1,181 IPM
RAPID TRAVERSE (Z AXIS) 945 IPM
RAPID TRAVERSE (A/B AXIS) 3600 DEG./MIN.
CUTTING FEEDRATE X/Y/Z AXIS 0.039 - 945 IPM
CUTTING FEEDREATE A/B AXIS 1 - 2,400 DEG./MIN.
HYDRAULIC UNIT MOTOR 3.7 HP
MACHINE EQUIPPED WITH:
1000 PSI COOLANT THRU SPINDLE
CHIP BLASTER UNIT
RENISHAW PROBING
SPINDLE CHILLER
JORGENSEN HINGE TYPE CHIP CONVEYOR
TRANSFORMER
UNDER 16000 CUTTING HOURS
295" x 11' x 136"
