Matsuura MC 100V-DC CNC Twin Spindle VMC

× Bidding has ended on this item.
Ended
LIVE WEBCAST

Tsudakoma RNCM-401R 5th Axis Table, 2 x 30 ATC

Prev Lot
  Lot # 171
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Ronkonkoma, NY
Logistics
LOADING FEE OF $4,300.00 WILL BE ADDED TO THE WINNING INVOICE.

  • Lot # 171
  • System ID # 1738249
  • Item # 1738250
Description

Matsuura MC 1000V-DC Twin Spindle CNC Vertical Machining Center

S/N: 86045382
New (06/1986)

X-Axis Travel, Longitudinal: 41.3"
Y-Axis Travel, Cross: 20.1"
Z-Axis Travel, Vertical: 22.0"
Table Size: 55" x 20"
Table Weight Capacity: 2200 Lbs.
Number of Spindles: 2
Distance Between Spindle Centers: 20"
Spindle Nose To Table: 6"-28"
Spindle Center To Column: 22"
Table Longitudinal Center To Column: 12"-32"
Spindle Speeds: 20-4500 RPM
Spindle Motor: 25 HP / 20 HP AC
Spindle Taper: BT-45
Tool Changers: 2 x 30 ATC

Equipped With:
Fanuc 11M CNC Control

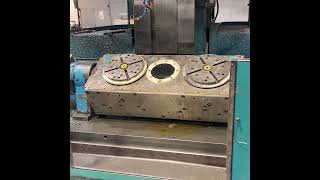

Tsudakoma Model RNCM-401R Fifth Axis Table   S/N: 510552
124" x 120" x 144"
